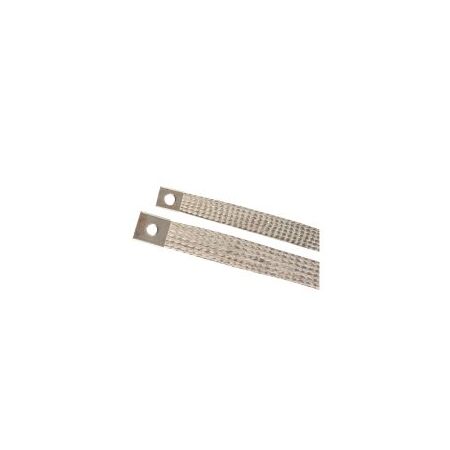

Flexible Copper Earth Braid 300A 600mm Long Two M10 Studs Cabac
Cabac Flexible Copper Earth Braid features a 300A rating, 600mm length and two m10 studs. Ideal for earthing and bonding links on switchgear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 300A Copper Earth Braid, Flexible Copper Braid, Switchboard Earth Bonding Braid, Copper Earthing Link
Technical Specifications
- Current Rating: 300A nominal
- Material: Copper braid with tinned braid and plated copper ferrules
- Braid Construction: 2 x 25mm² copper braids
- Stud Size: Two M10 mounting holes
- Length: 600mm between hole centres
- Ferrule Type: Seamless rectangular copper ferrules
- Rated Current Note: Nominal rating; environmental conditions may require derating
- Typical Indoor Derating: Approximately 20%
- Dimensions (H x L x W): 2mm x 600mm x 25mm
- Weight: 0.3 kg
Key Features
- Highly flexible copper braid for electrical earthing and bonding
- Designed for switchgear, disconnects and switch handle grounding
- Two-hole construction for secure equipment bonding connections
- Tinned braid and plated ferrules support corrosion resistance
- Helps accommodate vibration and thermal expansion or contraction
- 300A nominal current rating for high-current electrical applications
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with AS/NZS 3000 and the equipment manufacturer's requirements. Verify the required conductor rating, fault-current withstand and connection torque before installation.
Applications
- Switchgear earthing and bonding links
- Switchboard and electrical enclosure bonding
- Disconnect and switch handle grounding
- Flexible bonding across vibrating or moving electrical equipment
- Compensating for thermal expansion and contraction in electrical connections
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules, Section 5, for earthing conductors and equipotential bonding where applicable
Environmental Benefits
- Copper is highly recyclable and can be recovered at the end of the product's service life
- Flexible construction and durable plated connections can extend service life and reduce replacement waste
- Supports reliable earthing and bonding of electrical equipment, contributing to safe and durable installations
Warranty Information
Product-specific warranty period is not published. CABAC warranty claims are subject to the manufacturer's applicable terms and conditions and rights under the Australian Consumer Law.
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the distributor.
