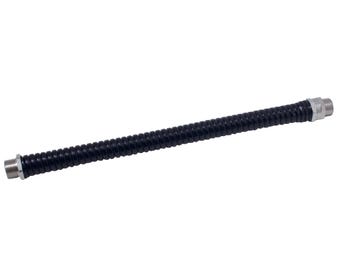

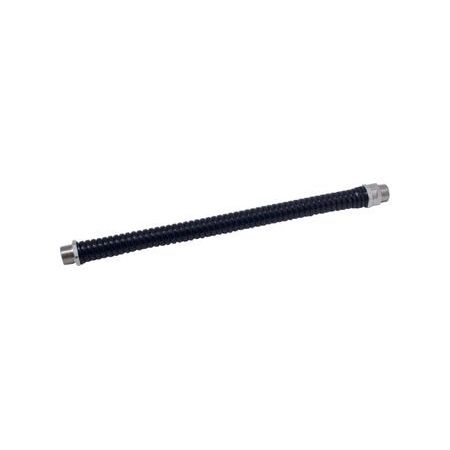

Flexible Electrical Conduit 16mm | Galvanised Steel & UV Resistant PVC | 25m Length by Cabac
Cabac CONDUIT CVJC Extra Flex is a lightweight, highly flexible galvanised steel conduit with a UV resistant PVC jacket, designed for mechanical protection and moisture resistance in complex electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT CVJC EXTRA FLEX GALVANISED STEEL PVC NC16X25M
Brand: Cabac
SKU: CVJC16-25
Alternatively Known As: Flexible Steel Conduit, Extra Flex Electrical Conduit, Galvanised Steel PVC Conduit, CVJC Flexible Conduit
Technical Specifications
- Material: Galvanised Steel with PVC jacket
- Temperature rating: -20 to +70 degrees Celsius
- Nominal Size: 16mm
- Length: 25 metres
- Interlocked and helically wound construction
- Black PVC vacuum jacket, UV resistant
- Dimensions (H x L x W): 16mm x 25000mm x 16mm
- Weight: 1.2 kg
Key Features
- Lightweight electrical conduit with extreme flexibility
- Strong electrogalvanised steel core for reliable mechanical protection
- Thin UV resistant PVC jacket for enhanced moisture protection
- Suitable for static, tight bend, and dynamic installations
- Compatible with brass fittings in fixed and swivel varieties
- Compatible with Liquid Tight IP66 fittings in steel, brass, or stainless steel
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal conduit performance.
Applications
- Electrical wiring protection in machining centres
- Robotics installations
- Static, tight bend, or dynamic electrical conduit installations requiring high flexibility
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel core extends product life reducing waste
- UV resistant PVC jacket reduces degradation and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CONDUIT CVJC Extra Flex Galvanised Steel PVC NC16X25M is available now for immediate purchase. Ideal for electrical wiring protection in complex and dynamic industrial applications.
