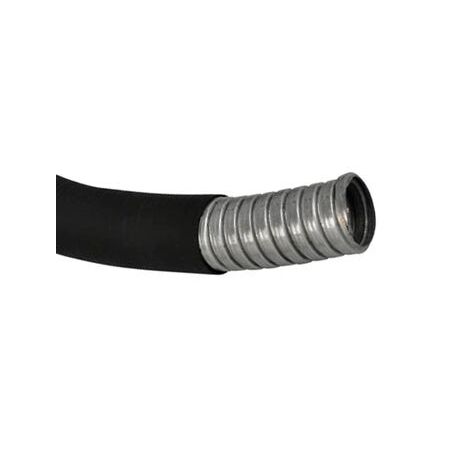

Flexible Galvanised Steel Conduit Extreme Temp 25mm 25m Grey Cabac

BRAND: CABAC
SKU: SPLHC20/25M
$1,009.60 List price: $1,346.10
1 ROL ($1,009.60 per ROL)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac 25mm flexible galvanised steel conduit (25m length) features extreme temperature tolerance. Ideal for AS NZS 3000 compliant electrical installations.
Technical Specifications
  • Core Material: Galvanized steel (string packed)
  • Jacket Material: High temperature thermoplastic rubber (TPR)
  • Temperature Range: Static -65ºC to +135ºC, Dynamic -45ºC to +150ºC
  • IP Rating: 10 Bar for 30 minutes, IP69K
  • Flexibility: Maintains flexibility at sub-zero temperatures
  • UV Resistance: Very high
  • Mechanical Strength: Good
  • Dimensions (H x L x W): 25mm x 25000mm x 25mm
  • Weight: 2.5 kg
Key Features
  • Galvanized steel core with string packing for durability
  • High temperature thermoplastic rubber jacket
  • Highly flexible even at sub-zero temperatures
  • Temperature range: Static Applications -65ºC to +135ºC, Dynamic Applications -45ºC to +150ºC
  • Chemically resistant
  • High IP rating: 10 Bar for 30 minutes, rated to IP69K
  • Very high UV resistance
  • Good mechanical strength
Professional Installation Requirements
  • Installation should be performed by qualified professionals familiar with high temperature and industrial conduit systems to ensure compliance with safety standards.
Applications
  • Offshore environments
  • Oil & Gas industry
  • Utility – Power and Energy sectors
  • Industrial processing plants
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable construction reduces need for frequent replacements
  • High chemical resistance minimizes environmental contamination risks
  • UV resistance extends product life, reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac CONDUIT SPLHC Extreme Temperature Galvanised Steel TPR NC20X25M is available for immediate purchase, ideal for demanding industrial and offshore applications.
