Trade Discount 17%

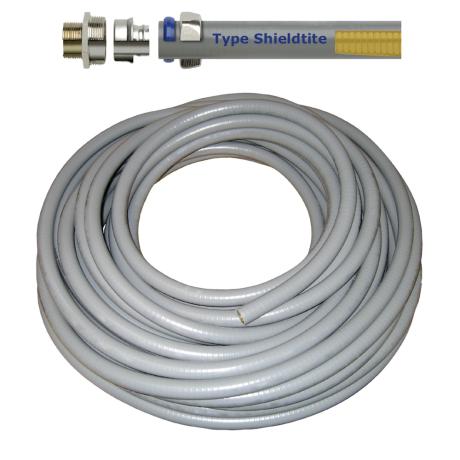

Flexible Metal Conduit 1-1/2" Shieldtite® EMC | 15m Length | High Electromagnetic Shielding | Durable PVC Cover | by Wattmaster
Flexible Metal Conduit 1-1/2" Shieldtite® EMC is designed for superior cable protection in commercial and industrial settings. With a continuously interlocked bronze core and a smooth grey thermoplastic PVC cover, it offers exceptional shielding effectiveness of 81 – 119 dB against EMI and EMP. Ideal for exposed or concealed installations, this conduit ensures durability and compliance with Mil–STD–1310D standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit 1-1/2" Shieldtite® EMC | 15m Length | High Electromagnetic Shielding | Durable PVC Cover | by Wattmaster
Brand: Wattmaster
SKU: ANAEMC112
Alternatively Known As: Shieldtite Flexible Metal Conduit, EMC Flexible Conduit, Bronze Core Flexible Conduit, EMI Shielded Conduit
Technical Specifications
- Conduit Size: 1-1/2 inch (approximately 40mm diameter)
- Length: 15 meters
- Core Material: Continuously interlocked high shielding bronze core
- Cover Material: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Cover Properties: Abrasion resistant, flame retardant, sunlight resistant, heat, oil and chemical resistant
- Installation: Uses standard liquid-tight fittings
- Dimensions (H x L x W): 40mm x 15000mm x 40mm
- Weight: 3.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover resistant to sunlight, heat, oil, and chemicals
- Extra flexible with a special continuously interlocked bronze core for exceptional shielding
- Meets Mil–STD–1310D standards for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
- Durable, abrasion resistant, flame retardant cover suitable for exposed applications
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper shielding effectiveness.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed or concealed conduit installations requiring high flexibility and durability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Protects cables from electromagnetic interference, improving energy efficiency of electrical systems
Warranty Information
Warranty details available upon request from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit 1-1/2" Shieldtite® EMC 15m is available for immediate purchase, ideal for commercial and industrial electrical installations requiring high-level EMI shielding.
