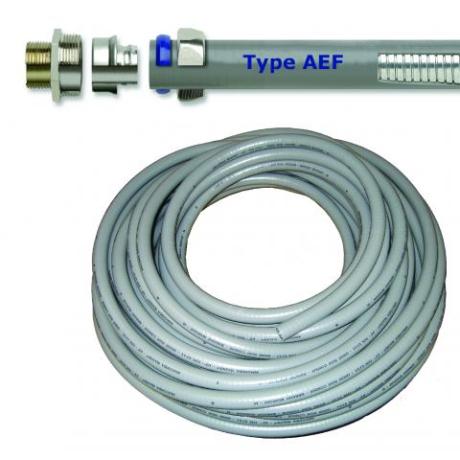

Flexible Metal Conduit | 16mm Diameter | Liquidtight & Sunlight Resistant | by Wattmaster
Flexible Metal Conduit is designed for electrical wiring protection, featuring a 16mm diameter and a durable, sunlight-resistant grey thermoplastic PVC cover. Ideal for both indoor and outdoor applications, this conduit ensures liquid-tight performance and is perfect for residential, commercial, and industrial installations. With an IP67 rating when used with approved connectors, it offers reliable protection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit | 16mm Diameter | Liquidtight & Sunlight Resistant | by Wattmaster
Brand: Wattmaster
SKU: AEF38-30
Alternatively Known As: Liquidtight Flexible Metal Conduit, AEF Liquidtight Conduit, Flexible Electrical Conduit 16mm, Grey Metal Conduit 30m
Technical Specifications
- Diameter: 16mm
- Length: 30m
- Core Material: Galvanised steel
- Cover Material: Grey thermoplastic PVC
- IP Rating: IP67 with approved connectors
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- No copper ground wire included
- Dimensions (H x L x W): 16mm x 30000mm x 16mm
- Weight: 2.5 kg
Key Features
- Extra flexible all-purpose wiring conduit with galvanised steel core
- Durable, sunlight resistant grey thermoplastic PVC cover
- Uses standard liquid-tight fittings for easy installation
- Smooth appearing cover suitable for exposed applications
- Convenient length markings in feet on the conduit
- IP67 rating when installed with approved connectors
- Temperature range from -20°C to +80°C (up to +90°C intermittent)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for liquid-tight performance.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Outdoor and indoor conduit applications requiring liquid-tight protection
- Use in environments exposed to sunlight and moisture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
Available for immediate purchase, ideal for electrical wiring protection in residential, commercial, and industrial applications requiring flexible, liquid-tight conduit.
