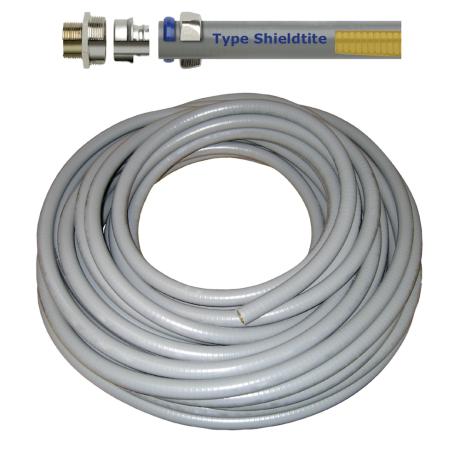

Flexible Metal Conduit 2" Shieldtite® EMC | 15m Length | High Electromagnetic Shielding | Smooth Grey PVC Cover | by Wattmaster
Flexible Metal Conduit 2" Shieldtite® EMC is designed for superior cable protection with high-level electromagnetic shielding. Ideal for commercial and industrial applications, it features a special bronze core and a smooth grey thermoplastic PVC cover that resists sunlight, heat, oil, and chemicals. This conduit meets Mil–STD–1310D standards, ensuring reliable performance in exposed environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit 2" Shieldtite® EMC | 15m Length | High Electromagnetic Shielding | Smooth Grey PVC Cover | by Wattmaster
Brand: Wattmaster
SKU: ANAEMC200
Alternatively Known As: EMC Flexible Conduit, Shieldtite EMC Conduit, 2 inch Flexible Metal Conduit, Bronze Core Flexible Conduit
Technical Specifications
- Conduit Diameter: 63mm
- Length: 15 meters
- Core Material: Special bronze core for high shielding
- Cover Material: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Resistance: Flame retardant, abrasion resistant, sunlight resistant, heat and chemical resistant
- Installation: Uses standard liquid-tight fittings
- Dimensions (H x L x W): 63mm x 15000mm x 63mm
- Weight: 3.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover resistant to sunlight, heat, oil, and chemicals
- Extra flexible with a special bronze core for superior shielding effectiveness
- Constructed of continuously interlocked high shielding bronze core
- Meets Mil–STD–1310D standards for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper shielding performance.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed or outdoor environments requiring abrasion and sunlight resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Protects cables from electromagnetic interference, improving energy efficiency of electrical systems
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit 2" Shieldtite® EMC 15m is available for immediate purchase, ideal for industrial and commercial electrical wiring applications requiring high-level EMI shielding.
