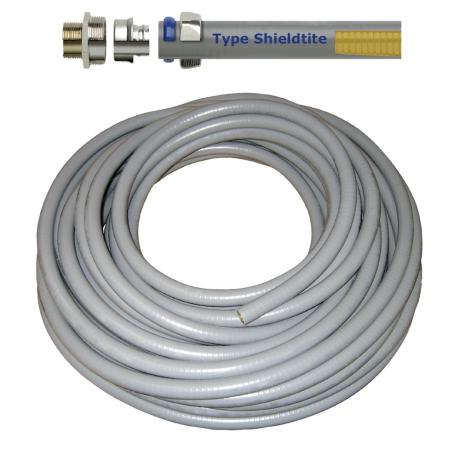

Flexible Metal Conduit 3/4" Shieldtite® EMC | 30m Length | High Shielding Bronze Core | Smooth Grey PVC Cover | @Each by Wattmaster
Flexible Metal Conduit 3/4" Shieldtite® EMC is designed for superior cable protection with high-level electromagnetic shielding. Ideal for commercial and industrial electrical installations, it features a continuously interlocked high shielding bronze core and a smooth grey thermoplastic PVC cover that resists sunlight, heat, oil, and chemicals. This conduit meets Mil–STD–1310D standards, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit 3/4" Shieldtite® EMC | 30m Length | High Shielding Bronze Core | Smooth Grey PVC Cover | @Each by Wattmaster
Brand: Wattmaster
SKU: ANAEMC34
Alternatively Known As: Shieldtite Flexible Metal Conduit, EMC Flexible Conduit 3/4 inch, Bronze Core Flexible Conduit, EMI Shielded Conduit
Technical Specifications
- Conduit Diameter: 25mm (3/4 inch)
- Length: 30 meters
- Core Material: Continuously interlocked high shielding bronze
- Cover Material: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Resistance: Flame retardant, abrasion resistant, sunlight resistant, heat, oil, and chemical resistant
- Installation: Compatible with standard liquid-tight fittings
- Dimensions (H x L x W): 25mm x 30000mm x 25mm
- Weight: 3.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover resistant to sunlight, heat, oil, and chemicals
- Extra flexible conduit with a continuously interlocked high shielding bronze core
- Meets Mil–STD–1310D standards for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper EMI shielding.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed or harsh environments requiring abrasion and sunlight resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Protects sensitive electronic equipment from electromagnetic interference, improving energy efficiency and device longevity
Warranty Information
Warranty terms vary; typically includes coverage against manufacturing defects. Please refer to Wattmaster's official warranty policy.
Available Now
The Wattmaster Flexible Metal Conduit 3/4" Shieldtite® EMC 30m is available for immediate purchase, ideal for industrial and commercial electrical installations requiring high-level EMI protection.
