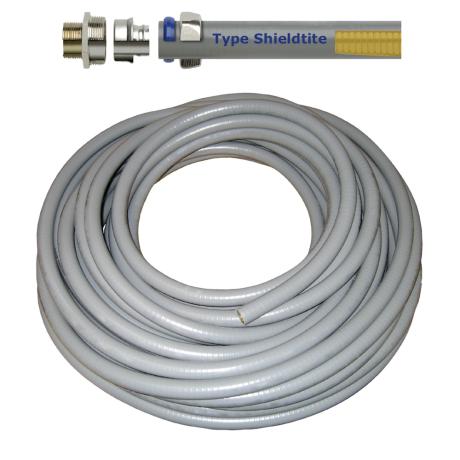

Flexible Metal Conduit 4" Shieldtite® EMC | 7.62m Length | High Electromagnetic Shielding | Smooth Grey PVC Cover | by Wattmaster
Flexible Metal Conduit 4" Shieldtite® EMC is designed for superior cable protection with high-level electromagnetic shielding, making it ideal for commercial and industrial electrical applications. With a durable smooth grey PVC cover that resists sunlight, heat, oil, and chemicals, this conduit ensures reliable performance in harsh environments. Its continuously interlocked bronze core provides exceptional flexibility and shielding effectiveness, meeting Mil–STD–1310D standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit 4" Shieldtite® EMC | 7.62m Length | High Electromagnetic Shielding | Smooth Grey PVC Cover | by Wattmaster
Brand: Wattmaster
SKU: ANAEMC400
Alternatively Known As: Flexible Metal Conduit 4 inch, Shieldtite EMC Conduit, EMC Flexible Conduit 4", EMI Shielded Conduit
Technical Specifications
- Conduit Diameter: 4 inches (102 mm)
- Length: 7.62 meters
- Core Material: Continuously interlocked bronze for high shielding effectiveness
- Cover Material: Smooth grey thermoplastic PVC, flame retardant and sunlight resistant
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Installation: Compatible with standard liquid-tight fittings
- Dimensions (H x L x W): 102mm x 7620mm x 102mm
- Weight: 3.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover resistant to sunlight, heat, oil, and chemicals
- Extra flexible conduit with a special continuously interlocked bronze core
- Meets Mil–STD–1310D standards for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
- Durable, abrasion resistant, flame retardant cover
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper shielding performance.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed or harsh environments requiring abrasion and sunlight resistance
- Suitable for installations requiring liquid-tight fittings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Protects cables from electromagnetic interference, improving energy efficiency of electrical systems
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit 4" Shieldtite® EMC 7.62m is available for immediate purchase, ideal for industrial and commercial electrical shielding applications.
