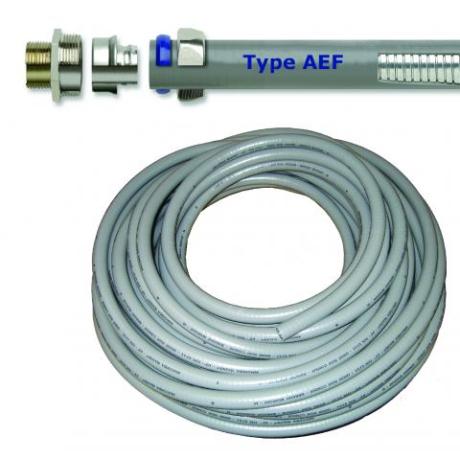

Flexible Metal Conduit Anaconda AEF | 20mm Diameter | Liquidtight & Sunlight Resistant | by Wattmaster
Flexible Metal Conduit Anaconda AEF is designed for reliable electrical wiring protection, featuring a 20mm diameter and a durable, sunlight-resistant grey thermoplastic PVC cover. Ideal for both indoor and outdoor applications, this conduit ensures liquid-tight sealing and is perfect for residential, commercial, and industrial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Anaconda AEF | 20mm Diameter | Liquidtight & Sunlight Resistant | by Wattmaster
Brand: Wattmaster
SKU: AEF12-15
Alternatively Known As: Flexible Metal Conduit 20mm, Liquidtight Flexible Conduit, AEF Liquidtight Conduit, Grey Flexible Electrical Conduit
Technical Specifications
- Core Material: Galvanised steel
- Cover Material: Grey thermoplastic PVC
- Diameter: 20mm
- Length: 15 meters
- IP Rating: IP67 with approved connectors
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- No copper ground wire included
- Dimensions (H x L x W): 20mm x 15000mm x 20mm
- Weight: 1.2 kg
Key Features
- Extra flexible all-purpose wiring conduit with galvanised steel core
- Durable, sunlight resistant grey thermoplastic PVC cover
- Smooth appearing cover suitable for exposed applications
- Convenient length markings in feet for easy measurement
- IP67 rating when installed with approved connectors
- Temperature range from -20°C to +80°C (up to +90°C intermittent)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for liquid-tight applications.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Outdoor and indoor conduit applications requiring liquid-tight protection
- Use in environments exposed to sunlight and moisture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Anaconda AEF Liquidtight Flexible Metal Conduit 20mm x 15m Grey is available for immediate purchase, ideal for electrical wiring protection in both indoor and outdoor environments.
