Flexible Metal Conduit Anaconda AEF Liquidtight | 103mm Diameter | IP67 Rated | Grey PVC | @Each by Wattmaster

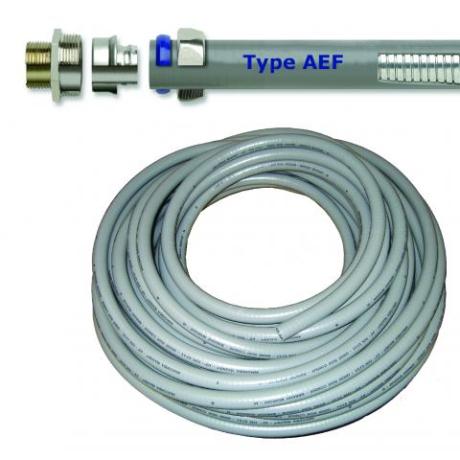

Flexible Metal Conduit Anaconda AEF Liquidtight is designed for robust electrical wiring protection, featuring a 103mm diameter and IP67 rating for liquid-tight applications. Ideal for both indoor and outdoor use, this conduit is made from durable galvanised steel with a grey thermoplastic PVC cover, ensuring longevity and resistance to sunlight. Perfect for residential, commercial, and industrial installations, it simplifies wiring while providing reliable protection against moisture.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Anaconda AEF Liquidtight | 103mm Diameter | IP67 Rated | Grey PVC | @Each by Wattmaster
Brand: Wattmaster
SKU: AEF400
Alternatively Known As: Liquidtight Flexible Metal Conduit, AEF Liquidtight Conduit, Flexible Electrical Conduit, Anaconda AEF Conduit
Technical Specifications
- Core Material: Galvanised steel
- Cover Material: Grey thermoplastic PVC
- Diameter: 103mm
- Length: 7.62 meters
- IP Rating: IP67 with approved connectors
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- No copper ground wire included
- Dimensions (H x L x W): 103mm x 7620mm x 103mm
- Weight: 3.5 kg
Key Features
- Extra flexible all-purpose wiring conduit with galvanised steel core
- Durable, sunlight resistant grey thermoplastic PVC cover
- Uses standard liquid-tight fittings for easy installation
- Smooth appearing cover suitable for exposed applications
- Convenient markings in feet for easy measurement
- IP67 rating when installed with approved connectors
- Temperature range from -20°C to +80°C, up to +90°C intermittent
Professional Installation Requirements
- Installation should be performed by a qualified electrician using approved liquid-tight fittings to maintain IP67 rating and ensure safety.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Outdoor and indoor conduit applications requiring liquid-tight protection
- Use in environments exposed to sunlight and moisture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Flexible Metal Conduit Anaconda AEF Liquidtight 103mm Diameter 7.62m is available for immediate purchase, ideal for electrical wiring protection in both indoor and outdoor environments.
