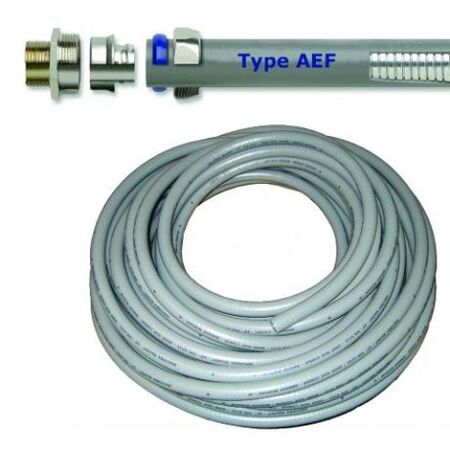

Flexible Metal Conduit Anaconda AEF Liquidtight | 75mm Diameter | IP67 Rated | Grey PVC Cover | by Wattmaster
Flexible Metal Conduit Anaconda AEF Liquidtight is designed for robust electrical wiring protection, featuring a 75mm diameter and IP67 rating for liquid-tight applications. Ideal for both indoor and outdoor use, this conduit is made with a durable grey thermoplastic PVC cover and a galvanised steel core, ensuring longevity and resistance to sunlight. Perfect for residential, commercial, and industrial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Anaconda AEF Liquidtight | 75mm Diameter | IP67 Rated | Grey PVC Cover | by Wattmaster
Brand: Wattmaster
SKU: AEF212
Alternatively Known As: Flexible Metal Conduit, Liquidtight Flexible Conduit, AEF Liquidtight Conduit, Anaconda Flexible Conduit
Technical Specifications
- Diameter: 75mm
- Length: 7.62m
- Core Material: Galvanised steel
- Cover Material: Grey thermoplastic PVC
- IP Rating: IP67 with approved connectors
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- No copper ground wire included
- Dimensions (H x L x W): 75mm x 7620mm x 75mm
- Weight: 3.5 kg
Key Features
- Extra flexible all-purpose wiring conduit with galvanised steel core
- Durable, sunlight resistant grey thermoplastic PVC cover
- Smooth appearing cover suitable for exposed applications
- Convenient markings in feet for easy measurement
- IP67 rating when installed with approved connectors
- Temperature range from -20°C to +80°C, up to +90°C intermittent
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for liquid-tight performance.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Outdoor and indoor conduit applications requiring liquid-tight protection
- Use in environments exposed to sunlight and moisture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Flexible Metal Conduit Anaconda AEF Liquidtight 75mm diameter 7.62m length is available for immediate purchase, ideal for electrical wiring protection in both indoor and outdoor applications.
