Trade Discount 17%

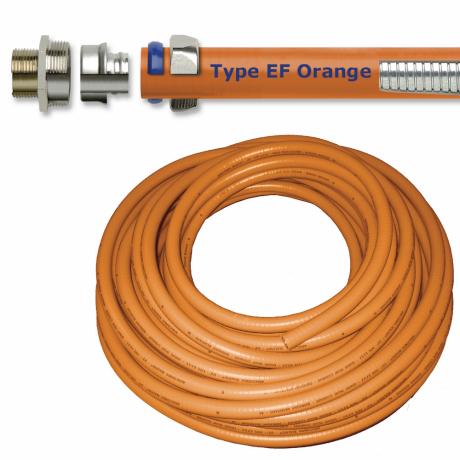

Flexible Metal Conduit Anaconda EF | 16mm Diameter | Liquidtight & Sunlight Resistant | by Wattmaster
Flexible Metal Conduit Anaconda EF is designed for robust cable protection in harsh environments, featuring a 16mm diameter and a durable orange thermoplastic PVC cover. Ideal for both indoor and outdoor applications, it provides liquid-tight and dust-tight protection, ensuring the safety of electrical wiring in exposed installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Anaconda EF | 16mm Diameter | Liquidtight & Sunlight Resistant | by Wattmaster
Brand: Wattmaster
SKU: EF38-ORG-15
Alternatively Known As: Liquidtight Flexible Metal Conduit, EF Liquidtight Conduit, Anaconda EF Conduit 16mm, Flexible Electrical Conduit 16mm
Technical Specifications
- Diameter: 16mm
- Length: 15m
- Core Material: Galvanised steel
- Cover Material: Orange thermoplastic PVC
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- IP Rating: IP67 when installed with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 16mm x 15000mm x 16mm
- Weight: 1.2 kg
Key Features
- Provides dust and liquid tight protection of cables
- Extra flexible general construction grade wiring conduit with galvanised steel core
- Durable, sunlight resistant orange thermoplastic PVC cover
- Smooth appearing cover with convenient markings in feet
- Temperature range from -20°C to +80°C, up to +90°C intermittent
- IP67 rating when installed with approved connectors
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for liquid-tight protection.
Applications
- Cable protection in harsh industrial and commercial environments
- Protection of electrical wiring from dust and liquids
- Use in exposed installations requiring flexible conduit solutions
- Suitable for outdoor and indoor electrical wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Anaconda EF Liquidtight Flexible Metal Conduit 16mm Orange 15m is available for immediate purchase, ideal for industrial and commercial cable protection applications.
