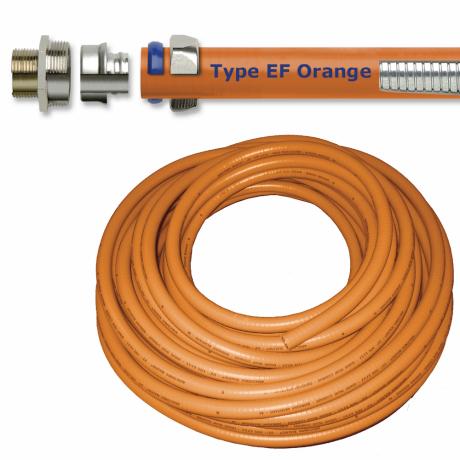

Flexible Metal Conduit Anaconda EF | 20mm Diameter | Liquidtight & Extra Flexible | Orange PVC | @Each by Wattmaster
Flexible Metal Conduit Anaconda EF is designed for robust cable protection in harsh environments, featuring a 20mm diameter and a durable orange thermoplastic PVC cover. Ideal for industrial, commercial, and residential applications, it offers IP67-rated dust and liquid tight protection, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Anaconda EF | 20mm Diameter | Liquidtight & Extra Flexible | Orange PVC | @Each by Wattmaster
Brand: Wattmaster
SKU: EF12-ORG-15
Alternatively Known As: Flexible Metal Conduit 20mm, Liquidtight Conduit 20mm, Anaconda EF Conduit, Orange Flexible Conduit
Technical Specifications
- Diameter: 20mm
- Length: 15m
- Core Material: Galvanised steel
- Cover Material: Orange thermoplastic PVC
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- IP Rating: IP67 with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 20mm x 15000mm x 20mm
- Weight: 1.2 kg
Key Features
- Provides cable protection in harsh environments
- Dust and liquid tight protection of cables
- Extra flexible general construction grade wiring conduit with galvanised steel core
- Durable, sunlight resistant orange thermoplastic PVC cover
- Smooth appearing cover suitable for exposed applications
- Temperature range from -20°C to +80°C, up to +90°C intermittent
- IP67 rating when installed with approved connectors
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for liquid-tight protection.
Applications
- Cable protection in harsh industrial and outdoor environments
- Electrical wiring protection in commercial and residential buildings
- Use in areas requiring dust and liquid tight cable protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Anaconda EF Liquidtight Flexible Metal Conduit 20mm Orange 15m is available for immediate purchase, ideal for industrial, commercial, and residential cable protection applications.
