Trade Discount 17%

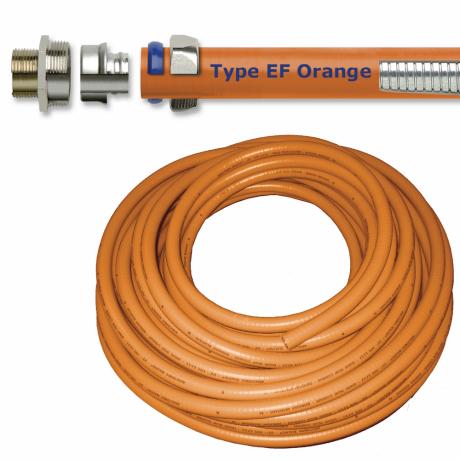

Flexible Metal Conduit Anaconda EF Liquidtight | 16mm Diameter | IP67 Rated | Orange PVC | @Each by Wattmaster
Flexible Metal Conduit Anaconda EF Liquidtight is designed for robust cable protection in harsh environments. With a 16mm diameter and IP67 rating, it ensures dust and liquid tightness, making it ideal for industrial, commercial, and residential applications. The durable orange thermoplastic PVC cover is UV resistant, providing longevity and reliability in exposed settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Anaconda EF Liquidtight | 16mm Diameter | IP67 Rated | Orange PVC | @Each by Wattmaster
Brand: Wattmaster
SKU: EF38-ORG-30
Alternatively Known As: Liquidtight Flexible Metal Conduit, EF Liquidtight Conduit, Anaconda EF Conduit, Flexible Electrical Conduit
Technical Specifications
- Diameter: 16mm
- Length: 30m
- Core Material: Galvanised steel
- Cover Material: Orange thermoplastic PVC
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- IP Rating: IP67 with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 16mm x 30000mm x 16mm
- Weight: 1.5 kg
Key Features
- Provides dust and liquid tight protection of cables
- Extra flexible general construction grade wiring conduit with galvanised steel core
- Durable, sunlight resistant orange thermoplastic PVC cover
- Smooth appearing cover with convenient markings in feet
- Temperature range from -20°C to +80°C, up to +90°C intermittent
- IP67 rating when installed with approved connectors
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for liquid tightness.
Applications
- Cable protection in harsh industrial and outdoor environments
- Electrical wiring protection in commercial and residential buildings
- Use in areas requiring dust and liquid tight cable protection
- Suitable for exposed applications requiring UV resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Anaconda EF Liquidtight Flexible Metal Conduit 16mm Orange 30m is available for immediate purchase, ideal for industrial, commercial, and residential cable protection applications.
