Trade Discount 17%

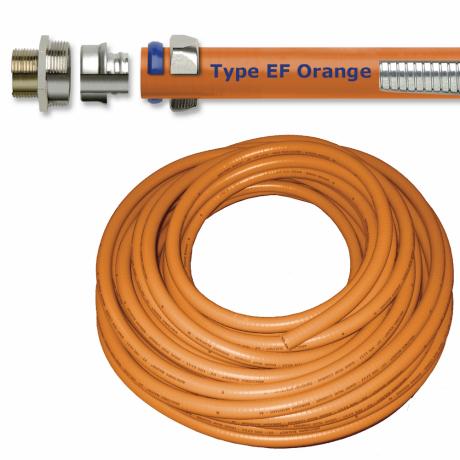

Flexible Metal Conduit Anaconda EF Liquidtight | 20mm Diameter | IP67 Rated | Orange PVC | @Each by Wattmaster
Flexible Metal Conduit Anaconda EF Liquidtight is designed for robust cable protection in harsh environments. With a 20mm diameter and IP67 rating, it safeguards electrical wiring from dust and liquids, making it ideal for both indoor and outdoor applications. The durable orange thermoplastic PVC cover ensures flexibility and longevity, perfect for industrial and commercial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Anaconda EF Liquidtight | 20mm Diameter | IP67 Rated | Orange PVC | @Each by Wattmaster
Brand: Wattmaster
SKU: EF12-ORG-30
Alternatively Known As: Liquidtight Flexible Metal Conduit, EF Liquidtight Conduit, Anaconda EF Conduit, Flexible Electrical Conduit 20mm
Technical Specifications
- Diameter: 20mm
- Length: 30m
- Core Material: Galvanised steel
- Cover Material: Orange thermoplastic PVC
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- IP Rating: IP67 with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 20mm x 30000mm x 20mm
- Weight: 1.5 kg
Key Features
- Provides cable protection in harsh environments
- Dust and liquid tight protection of cables
- Extra flexible general construction grade wiring conduit with galvanised steel core
- Durable, sunlight resistant orange thermoplastic PVC cover
- Smooth appearing cover suitable for exposed applications
- Convenient markings in feet for easy measurement
- Temperature range from -20°C to +80°C (up to +90°C intermittent)
- IP67 rating when installed with approved connectors
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Cable protection in harsh industrial and commercial environments
- Protection of electrical wiring from dust and liquids
- Use in exposed outdoor and indoor installations requiring flexibility and durability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as provided by Wattmaster, typically 1-3 years depending on application and installation conditions.
Available Now
The Wattmaster Anaconda EF Liquidtight Flexible Metal Conduit 20mm Orange 30m is available for immediate purchase, ideal for industrial, commercial, and outdoor electrical wiring protection.
