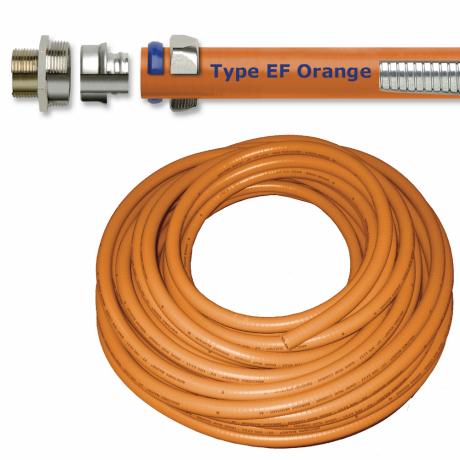

Flexible Metal Conduit Anaconda EF Liquidtight | 40mm Diameter | IP67 Rated | Orange PVC | @Each by Wattmaster
Flexible Metal Conduit Anaconda EF Liquidtight is designed for robust cable protection in harsh environments. With a 40mm diameter and IP67 rating, it ensures dust and liquid tightness, making it ideal for outdoor and industrial applications. The durable orange thermoplastic PVC cover provides UV resistance, while the galvanised steel core offers extra flexibility and strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Anaconda EF Liquidtight | 40mm Diameter | IP67 Rated | Orange PVC | @Each by Wattmaster
Brand: Wattmaster
SKU: EF114-ORG-15
Alternatively Known As: Liquidtight Flexible Metal Conduit, EF Liquidtight Conduit, Anaconda EF Conduit, Flexible Electrical Conduit 40mm
Technical Specifications
- Diameter: 40mm
- Length: 15m
- Core Material: Galvanised steel
- Cover Material: Orange thermoplastic PVC
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- IP Rating: IP67 with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 40mm x 15000mm x 40mm
- Weight: 3.5 kg
Key Features
- Provides dust and liquid tight protection of cables
- Extra flexible general construction grade wiring conduit with galvanised steel core
- Durable, sunlight resistant orange thermoplastic PVC cover
- Smooth appearing cover with convenient markings in feet
- Temperature range from -20°C to +80°C (up to +90°C intermittent)
- IP67 rating when installed with approved connectors
- Uses standard liquid-tight fittings for easy installation
- No copper ground wire included
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Cable protection in harsh industrial and commercial environments
- Protection of electrical wiring from dust and liquids
- Use in exposed installations requiring UV and sunlight resistance
- Suitable for wiring in machinery, outdoor installations, and wet locations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Sunlight resistant cover extends product life in outdoor environments
- Protects cables from environmental damage, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty terms for details.
Available Now
The Wattmaster Anaconda EF Liquidtight Flexible Metal Conduit 40mm Orange 15m is available for immediate purchase, ideal for industrial, commercial, and outdoor electrical wiring protection.
