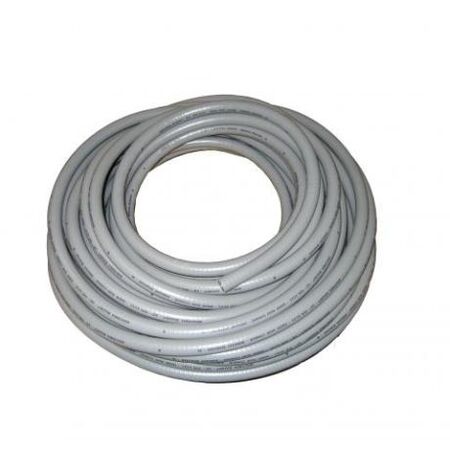

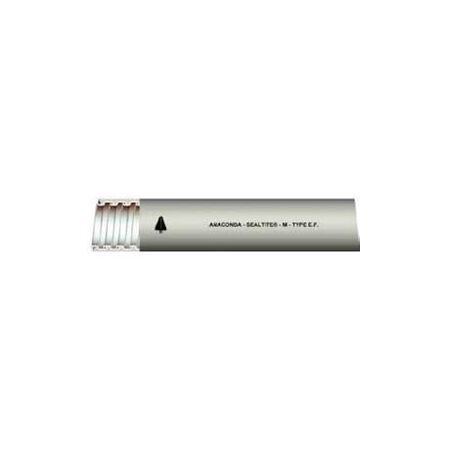

Flexible Metal Conduit Anaconda LDEF 20mm 30m Grey Wattmaster
Wattmaster 20mm flexible galvanised steel conduit (30m length) features IP67 ingress protection. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 20mm
- Length: 30m
- Material: Galvanized steel core with thermoplastic PVC cover
- Conforms to IEC 61386
- IP67 rated with correct fittings
- Temperature range: -20°C to +70°C (up to +80°C intermittent)
- No copper ground wire included
- Dimensions (H x L x W): 20mm x 30000mm x 20mm
- Weight: 1.2 kg
Key Features
- Provides flexible dust and liquid tight protection of cables
- Extra flexible general construction grade liquid-tight wiring conduit with galvanized steel core
- Durable, sunlight resistant, gray thermoplastic PVC cover
- Smooth appearing cover with convenient markings in feet
- IP67 rating with correctly installed fittings
- Temperature range from -20°C to +70°C (up to +80°C intermittent)
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fitting installation for IP67 rating.
Applications
- Cable protection in harsh industrial and commercial environments
- Flexible wiring conduit for electrical installations requiring dust and liquid tight protection
- Suitable for exposed applications requiring sunlight resistance and durability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant materials extend product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster warranty terms for details.
Available Now
The Wattmaster Flexible Conduit Anaconda LDEF Liquidtight 20mm Grey 30m is available for immediate purchase, ideal for industrial, commercial, and outdoor electrical wiring protection.
FAQ
Q: What is the IP rating of this conduit?
A: This conduit is rated IP67 when installed with the correct fittings, providing dust and liquid tight protection for electrical cabling.
Q: Where can this conduit be used?
A: It is suitable for industrial, commercial, and outdoor electrical installations where flexible cable protection and sunlight resistance are required.
Install with a flexible conduit fitting nylon straight NC32 M32 flame retardant fitting for secure conduit terminations.
Pair with a flexible conduit clip 20-25mm to support conduit runs in exposed installations.
A corrugated cable gland 32mm can be used where conduit entries require a protected cable transition point.
