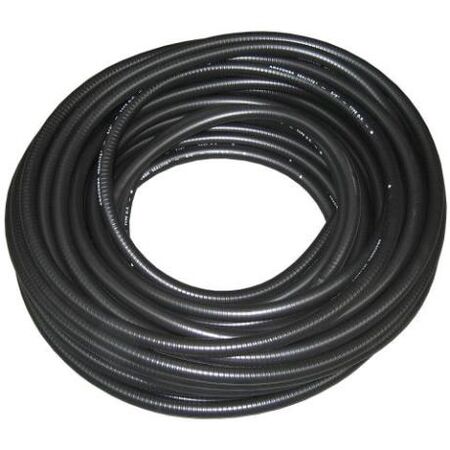

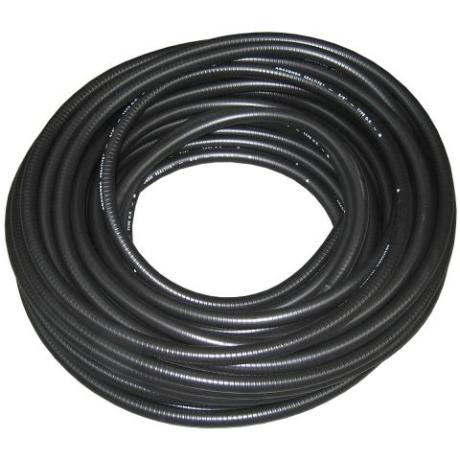

Flexible Metal Conduit | High Crush Resistance | IP67 Rated | 50mm Diameter | by Wattmaster
Flexible Metal Conduit designed for high crush resistance, featuring a durable zinc galvanised steel core and a thermoplastic PVC jacket. Ideal for protecting electrical cables in harsh industrial environments, this conduit offers IP67 dust and liquid tight protection when installed with approved connectors. With a temperature range of –46°C to +105°C, it’s perfect for both indoor and outdoor applications exposed to sunlight, oil, and chemicals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit | High Crush Resistance | IP67 Rated | 50mm Diameter | by Wattmaster
Brand: Wattmaster
SKU: HCB112-BLK-15
Alternatively Known As: Flexible Metal Conduit, Liquidtight Flexible Conduit, Anaconda HCB Conduit, High Crush Resistance Conduit
Technical Specifications
- Diameter: 50mm
- Length: 15m
- Temperature Range: –46°C to +105°C
- Core Material: Zinc galvanised steel
- Jacket Material: Thermoplastic PVC
- Protection Rating: IP67 with approved connectors
- Resistance: Crush, corrosion, sunlight, heat, oil, chemical
- Dimensions (H x L x W): 50mm x 15000mm x 50mm
- Weight: 3.5 kg
Key Features
- High crush resistance with zinc galvanised steel core
- Dust and liquid tight protection with IP67 rating when installed with approved connectors
- Durable thermoplastic PVC jacket resistant to heat, oil, chemical breakdown, and sunlight
- Temperature range from –46°C to +105°C
- Smooth cover with convenient length markings for easy installation
- Compatible with standard liquid-tight fittings
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for liquidtight protection.
Applications
- Protection of electrical cables in harsh industrial environments
- Outdoor and indoor cable routing requiring liquidtight and dustproof conduit
- Use in areas exposed to sunlight, oil, chemicals, and mechanical crush risks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life in harsh environments
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects for 1 year.
Available Now
Available for immediate purchase, ideal for industrial, commercial, and residential electrical cable protection applications.
