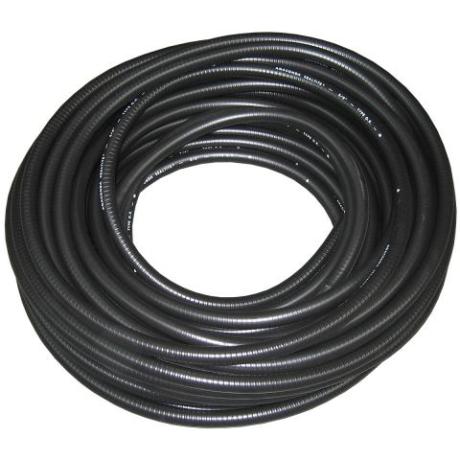

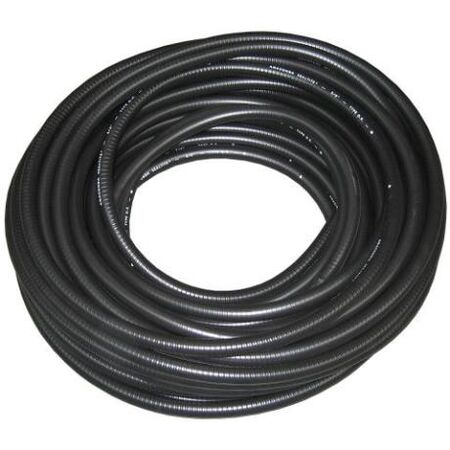

Flexible Metal Conduit | High Crush Resistance | IP67 Rated | Liquidtight | Diameter 32mm | by Wattmaster
Flexible Metal Conduit with high crush resistance and IP67 rating is perfect for protecting electrical cables in harsh environments. Designed for both indoor and outdoor applications, this conduit features a durable thermoplastic PVC jacket and a continuously interlocked zinc galvanised steel core, ensuring exceptional resistance to heat, oil, and chemicals. Ideal for industrial, commercial, and residential wiring, it provides reliable protection against dust and moisture.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit | High Crush Resistance | IP67 Rated | Liquidtight | Diameter 32mm | by Wattmaster
Brand: Wattmaster
SKU: HCB100-BLK-30
Alternatively Known As: Flexible Metal Conduit, Liquidtight Flexible Conduit, Anaconda HCB Conduit, High Crush Resistance Conduit, Waterproof Electrical Conduit
Technical Specifications
- Diameter: 32mm
- Length: 30m
- Temperature Range: –46°C to +105°C
- Core: Continuously interlocked hot dipped zinc galvanised steel
- Jacket: Sunlight resistant thermoplastic PVC
- Protection: Dust and liquid tight
- IP Rating: IP67 with approved connectors
- Resistance: Heat, oil, chemical breakdown, crush and corrosion
- Dimensions (H x L x W): 32mm x 30000mm x 32mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in harsh environments
- Temperature Range: –46°C to +105°C
- Dust and liquid tight protection of cables
- Continuously interlocked hot dipped zinc galvanised steel core for exceptional crush and corrosion resistance
- Durable sunlight resistant thermoplastic PVC jacket resistant to heat, oil, and chemical breakdown
- Uses standard liquid-tight fittings for easy installation
- Smooth cover with convenient markings in feet
- Waterproof flexible duct for electric cables
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for liquidtight protection.
Applications
- Industrial cable protection in harsh environments
- Outdoor and indoor electrical installations requiring liquidtight conduit
- Commercial and residential wiring protection
- Environments exposed to dust, moisture, and chemicals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact
- Protects cables from damage, preventing electrical faults and associated hazards
Warranty Information
Warranty details available upon request from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit High Crush Resistance Anaconda HCB Liquidtight 32mm 30m is available for immediate purchase, ideal for industrial, commercial, and residential electrical cable protection applications.
