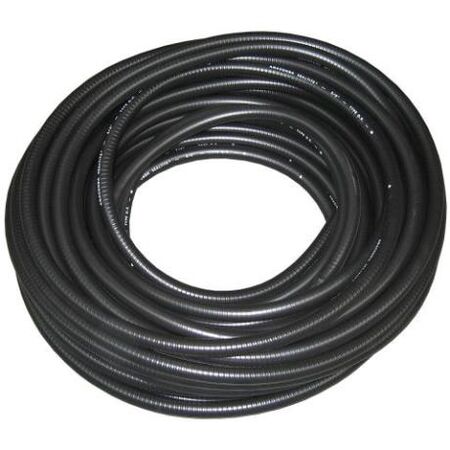

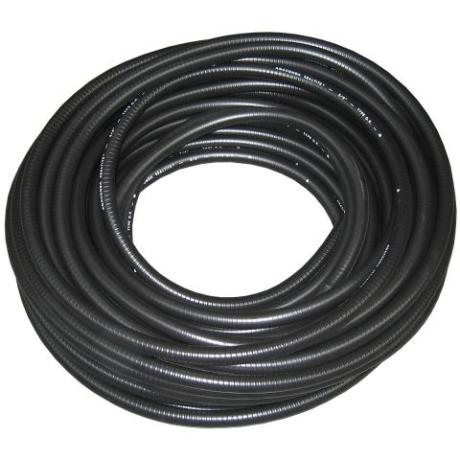

Flexible Metal Conduit | High Crush Resistance | Liquidtight | 128mm Diameter | @Each by Wattmaster
Flexible Metal Conduit with high crush resistance and liquidtight features is perfect for protecting cables in harsh environments. Designed for industrial, commercial, and residential applications, it withstands temperatures from -46°C to +105°C and offers IP67 protection when installed with approved connectors. Its durable construction ensures long-lasting performance, making it an ideal choice for areas exposed to dust, moisture, and mechanical impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit | High Crush Resistance | Liquidtight | 128mm Diameter | @Each by Wattmaster
Brand: Wattmaster
SKU: HCB400-BLK
Alternatively Known As: Flexible Metal Conduit, Liquidtight Flexible Conduit, Anaconda HCB Conduit, High Crush Resistance Conduit
Technical Specifications
- Diameter: 128mm
- Length: 7.62 meters
- Temperature Range: –46°C to +105°C
- Material: Hot dipped zinc galvanised steel core with thermoplastic PVC jacket
- IP Rating: IP67 when installed with approved connectors
- Crush Resistance: High
- Sunlight Resistance: Yes
- Chemical and Oil Resistance: Yes
- Dimensions (H x L x W): 128mm x 7620mm x 128mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in harsh environments
- Temperature Range: –46°C to +105°C
- Dust and liquid tight protection of cables
- Constructed of continuously interlocked hot dipped zinc galvanised steel core for exceptional crush and corrosion resistance
- Durable sunlight resistant thermoplastic PVC jacket resistant to heat, oil, and chemical breakdown
- Uses standard liquid-tight fittings for easy installation
- Smooth appearing cover with convenient markings in feet
- Waterproof flexible duct for electric cables
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for liquidtight protection.
Applications
- Industrial cable protection in harsh environments
- Outdoor and indoor electrical installations requiring liquidtight conduit
- Commercial and residential wiring protection
- Areas exposed to dust, moisture, and mechanical impact
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact
- Protects cables to prevent electrical faults and energy loss
Warranty Information
Warranty details available upon request from Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit High Crush Resistance Anaconda HCB Liquidtight Diameter 128mm Black Length 7.62M is available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications.
