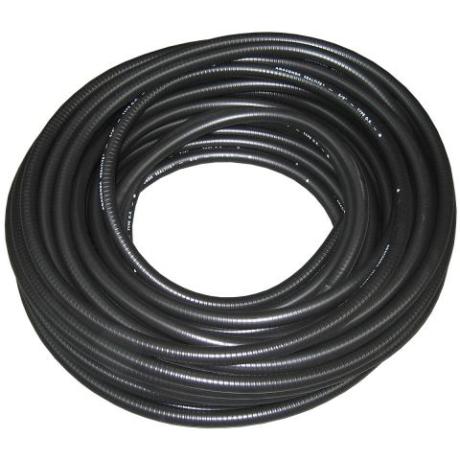

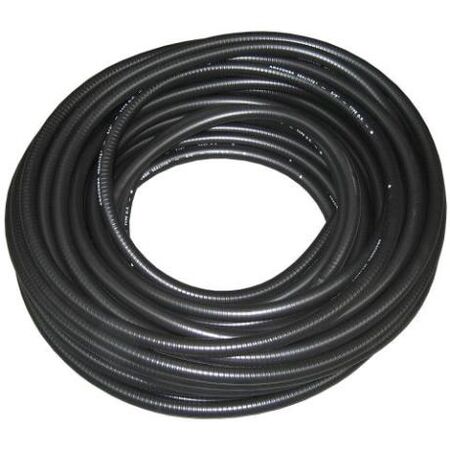

Flexible Metal Conduit | High Crush Resistance | Liquidtight | 16mm Diameter | 30m Length | by Wattmaster
Flexible Metal Conduit designed for high crush resistance and liquidtight applications, ideal for protecting electrical cables in harsh environments. With a durable construction of interlocked zinc galvanised steel and a sunlight resistant PVC jacket, it withstands temperatures from -46°C to +105°C. Perfect for both indoor and outdoor use, this conduit ensures reliable cable routing in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit | High Crush Resistance | Liquidtight | 16mm Diameter | 30m Length | by Wattmaster
Brand: Wattmaster
SKU: HCB38-BLK-30
Alternatively Known As: Flexible Metal Conduit, Liquidtight Flexible Conduit, Anaconda HCB Conduit, High Crush Resistance Conduit, Waterproof Electrical Conduit
Technical Specifications
- Diameter: 16mm
- Length: 30m
- Temperature Range: –46°C to +105°C
- Core Material: Continuously interlocked hot dipped zinc galvanised steel
- Jacket Material: Sunlight resistant thermoplastic PVC
- Protection Rating: IP67 with approved connectors
- Resistance: Crush resistant, corrosion resistant, oil and chemical resistant
- Installation: Uses standard liquid-tight fittings
- Dimensions (H x L x W): 16mm x 30000mm x 16mm
- Weight: 2.5 kg
Key Features
- Provides cable protection in harsh environments
- Temperature Range: –46°C to +105°C
- Dust and liquid tight protection of cables
- Constructed of continuously interlocked hot dipped zinc galvanised steel core for exceptional crush and corrosion resistance
- Durable sunlight resistant thermoplastic PVC jacket resistant to heat, oil, and chemical breakdown
- Uses standard liquid-tight fittings for easy installation
- Smooth appearing cover with convenient markings in feet
- Waterproof flexible duct for electric cables
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Protection of electrical cables in harsh industrial environments
- Outdoor and indoor cable routing requiring liquid and dust tight protection
- Use in areas exposed to sunlight, oil, chemicals, and mechanical stress
- Suitable for electrical installations requiring flexible, crush-resistant conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact
- Protects cables from damage, preventing electrical faults and associated hazards
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects for 1 year.
Available Now
The Wattmaster Flexible Metal Conduit High Crush Resistance Anaconda HCB Liquidtight 16mm 30m is available for immediate purchase, ideal for industrial and commercial electrical cable protection applications.
