Flexible Metal Conduit | Low Smoke Zero Halogen | IP66/67 Rated | 16mm Diameter | by Wattmaster
Flexible Metal Conduit designed for electrical wiring protection, featuring a low smoke zero halogen TPU jacket and an IP66/67 rating for liquid-tight applications. Ideal for industrial and commercial installations, this conduit offers exceptional crush and corrosion resistance, making it perfect for harsh environments and extreme temperatures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit | Low Smoke Zero Halogen | IP66/67 Rated | 16mm Diameter | by Wattmaster
Brand: Wattmaster
SKU: HFSS12-30
Alternatively Known As: Flexible Metal Conduit, HFSS Liquidtight Conduit, Low Smoke Zero Halogen Conduit, Anaconda HFSS Conduit
Technical Specifications

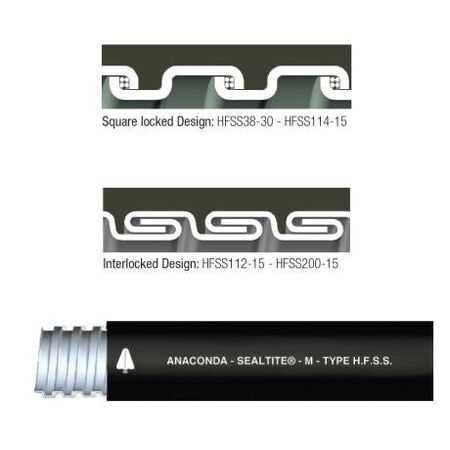

- Core Material: Continuously interlocked 316 stainless steel
- Jacket Material: TPU, flame retardant, low smoke, zero halogen
- Diameter: 16mm
- Length: 30m
- Temperature Rating: -40°C to +105°C
- IP Rating: IP66/67 with approved fittings
- Resistance: Crush and corrosion resistant, sunlight resistant, oil and chemical resistant
- Dimensions (H x L x W): 16mm x 30000mm x 16mm
- Weight: 2.5 kg
Key Features
- Constructed of continuously interlocked 316 stainless steel core for exceptional crush and corrosion resistance
- Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket
- Rated for temperature ranges from -40°C to +105°C
- IP66/67 rated when installed with approved liquid-tight fittings
- Smooth appearing jacket suitable for exposed applications
- Meets demands of higher temperature rated conductors
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for liquid-tight applications.
Applications
- Electrical wiring protection in industrial and commercial installations
- Liquid-tight raceway for electrical conductors in harsh environments
- Use in extreme temperature applications requiring corrosion and crush resistance
- Suitable for exposed applications requiring flame retardant and low smoke materials
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low smoke zero halogen jacket reduces toxic emissions in case of fire
- Durable materials extend product life reducing waste
- Corrosion resistance minimizes need for replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty terms for details.
Available Now
The Wattmaster Anaconda HFSS Flexible Metal Conduit 16mm Black 30m is available for immediate purchase, ideal for industrial and commercial electrical wiring protection requiring liquid-tight and corrosion resistant conduit.
