Flexible Metal Conduit | Low Smoke Zero Halogen | IP66/67 Rated | 21mm Diameter | by Wattmaster
Flexible Metal Conduit designed for electrical wiring protection, featuring a low smoke zero halogen TPU jacket and an IP66/67 rating when installed with approved fittings. Ideal for industrial and commercial installations, this conduit offers exceptional crush and corrosion resistance, making it perfect for harsh environments and extreme temperature applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit | Low Smoke Zero Halogen | IP66/67 Rated | 21mm Diameter | by Wattmaster
Brand: Wattmaster
SKU: HFSS34-30
Alternatively Known As: Flexible Metal Conduit, Liquidtight Flexible Conduit, LSZH Flexible Conduit, Zero Halogen Flexible Conduit, Anaconda HFSS Conduit
Technical Specifications

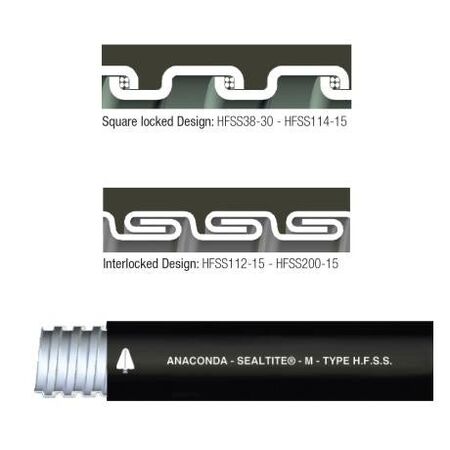

- Core Material: Continuously interlocked 316 stainless steel
- Jacket Material: TPU, low smoke zero halogen, flame retardant, sunlight resistant
- Diameter: 21mm
- Length: 30 meters
- Temperature Rating: -40°C to +105°C
- IP Rating: IP66/67 when installed with approved fittings
- Resistance: Crush resistant, corrosion resistant, oil and chemical resistant
- Dimensions (H x L x W): 21mm x 30000mm x 21mm
- Weight: 3.5 kg
Key Features
- Constructed of continuously interlocked 316 stainless steel core for exceptional crush and corrosion resistance
- Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket
- Rated for temperature ranges from -40°C to +105°C
- IP66/67 rated when installed with approved liquid-tight fittings
- Smooth appearing jacket suitable for exposed applications
- Provides liquid-tight raceway for electrical conductors
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper sealing for liquid-tight rating.
Applications
- Electrical wiring protection in industrial and commercial installations
- Liquid-tight raceway for electrical conductors in harsh environments
- Use in extreme temperature applications requiring corrosion and crush resistance
- Suitable for exposed applications requiring flame retardant and low smoke materials
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low smoke zero halogen materials reduce toxic emissions in case of fire
- Durable construction extends product life reducing waste
- Flame retardant properties enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years against manufacturing defects.
Available Now
Available for immediate purchase, ideal for industrial, commercial, and extreme environment electrical conduit applications.
