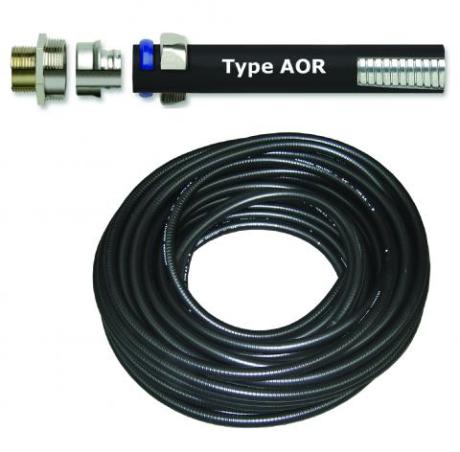

Flexible Metal Conduit Oil Resistant | 16mm Diameter | Liquidtight Design | Black PVC Cover | by Wattmaster
Flexible Metal Conduit Oil Resistant is designed for robust cable protection in oil-rich environments, featuring a 16mm diameter and a durable black thermoplastic PVC cover. Ideal for industrial and commercial electrical installations, it ensures reliable performance with an IP67 rating when installed with approved connectors, making it perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Oil Resistant | 16mm Diameter | Liquidtight Design | Black PVC Cover | by Wattmaster
Brand: Wattmaster
SKU: AOR38-15
Alternatively Known As: Oil Resistant Flexible Metal Conduit, Liquidtight Metal Conduit, Anaconda AOR Conduit, Oilproof Electrical Conduit
Technical Specifications
- Diameter: 16mm
- Length: 15m
- Temperature Range: -15°C to +100°C (up to +120°C intermittent)
- Material: Continuously interlocked galvanised steel core with cord packing
- Cover: Black thermoplastic PVC, oil and petroleum resistant
- IP Rating: IP67 when installed with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 16mm x 15000mm x 16mm
- Weight: 1.2 kg
Key Features
- Provides cable protection in oil rich environments
- Temperature Range: -15°C to +100°C (Up to +120°C intermittent)
- Heavy duty and oil resistant protection of cables
- Continuously interlocked galvanised steel core with cord packing
- Durable, sunlight resistant, black thermoplastic PVC cover
- Thermoplastic PVC cover highly resistant to petroleum and most synthetic oils
- Smooth appearing cover for exposed applications with convenient markings in feet
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Industrial environments with oil exposure
- Cable protection in machinery and automotive sectors
- Outdoor and indoor installations requiring liquid-tight conduit
- Heavy duty electrical wiring protection in oil-rich environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Oil Resistant Anaconda AOR Liquidtight 16mm x 15m is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust cable protection.
