Trade Discount 17%

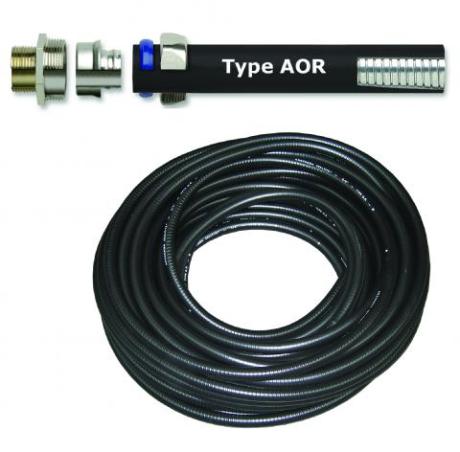

Flexible Metal Conduit Oil Resistant | 25mm Diameter | Liquidtight & IP67 Rated | Black | @Each by Wattmaster
Flexible Metal Conduit Oil Resistant is designed for robust cable protection in oil-rich environments, featuring a 25mm diameter and a durable black thermoplastic PVC cover. Ideal for industrial and automotive applications, it offers an IP67 rating when installed with approved connectors, ensuring reliable performance in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Oil Resistant | 25mm Diameter | Liquidtight & IP67 Rated | Black | @Each by Wattmaster
Brand: Wattmaster
SKU: AOR34-15
Alternatively Known As: Oil Resistant Flexible Metal Conduit, Liquidtight Metal Conduit, Anaconda AOR Conduit, Oilproof Flexible Conduit
Technical Specifications
- Diameter: 25mm
- Length: 15m
- Material: Continuously interlocked galvanised steel core with cord packing
- Cover: Black thermoplastic PVC, oil and sunlight resistant
- Temperature Range: -15°C to +100°C (up to +120°C intermittent)
- IP Rating: IP67 with approved connectors
- No copper ground wire
- Dimensions (H x L x W): 25mm x 15000mm x 25mm
- Weight: 1.5 kg
Key Features
- Provides cable protection in oil rich environments
- Temperature Range: -15°C to +100°C (Up to +120°C intermittent)
- Heavy duty and oil resistant protection of cables
- Continuously interlocked galvanised steel core with cord packing
- Durable, sunlight resistant, black thermoplastic PVC cover
- Thermoplastic PVC cover highly resistant to petroleum and most synthetic oils
- Smooth appearing cover with convenient markings in feet
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Industrial environments with oil exposure
- Cable protection in machinery and automotive sectors
- Outdoor and indoor installations requiring oil and weather resistance
- Liquid-tight conduit applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for industrial and commercial cable protection in oil-rich and harsh environments.
