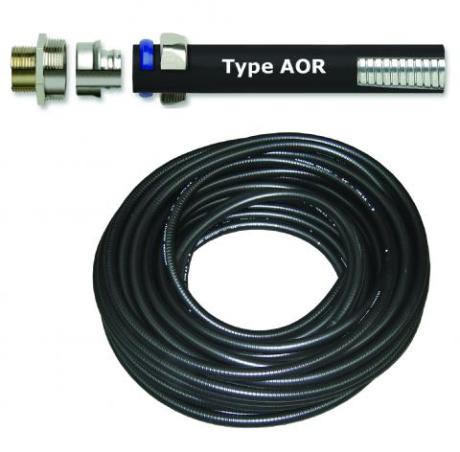

Flexible Metal Conduit Oil Resistant | 50mm Diameter | Liquidtight Design | Black PVC Cover | by Wattmaster
Flexible Metal Conduit Oil Resistant is designed for industrial environments, featuring a 50mm diameter and a liquidtight design that protects cables in oil-rich settings. With a durable black thermoplastic PVC cover and an IP67 rating when installed with approved connectors, it's perfect for commercial and residential electrical installations requiring reliable cable protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Oil Resistant | 50mm Diameter | Liquidtight Design | Black PVC Cover | by Wattmaster
Brand: Wattmaster
SKU: AOR112-15
Alternatively Known As: Oil Resistant Flexible Metal Conduit, Liquidtight Metal Conduit, Anaconda AOR Conduit, Oil Resistant Electrical Conduit
Technical Specifications
- Diameter: 50mm
- Length: 15m
- Temperature Range: -15°C to +100°C (Up to +120°C intermittent)
- Material: Continuously interlocked galvanised steel core with cord packing
- Cover: Black thermoplastic PVC, oil and sunlight resistant
- IP Rating: IP67 when installed with approved connectors
- No copper ground wire included
- Uses standard liquid-tight fittings for installation
- Dimensions (H x L x W): 50mm x 15000mm x 50mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in oil rich environments
- Temperature Range: -15°C to +100°C (Up to +120°C intermittent)
- Heavy duty and oil resistant protection of cables
- Continuously interlocked galvanised steel core with cord packing
- Durable, sunlight resistant, black thermoplastic PVC cover
- Thermoplastic PVC cover highly resistant to petroleum and most synthetic oils
- Smooth appearing cover for exposed applications with convenient markings in feet
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Industrial environments with oil exposure
- Commercial and residential electrical installations requiring oil-resistant conduit
- Protection of cables in machinery and equipment exposed to petroleum products
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Flexible Metal Conduit Oil Resistant Anaconda AOR Liquidtight 50mm x 15m is available for immediate purchase, ideal for industrial and commercial electrical installations requiring oil resistant cable protection.
