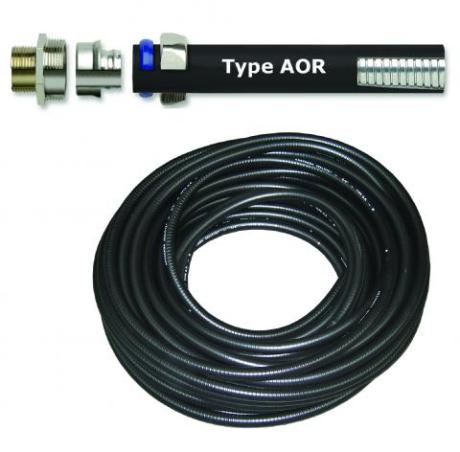

Flexible Metal Conduit Oil Resistant Anaconda AOR | 126mm Diameter | IP67 Rated | Black PVC Cover | @Each by Wattmaster
Flexible Metal Conduit Oil Resistant Anaconda AOR is designed for robust cable protection in oil-rich environments. With a 126mm diameter and an IP67 rating when installed with approved connectors, this conduit is perfect for industrial applications. Its durable black thermoplastic PVC cover ensures resistance to petroleum and synthetic oils, making it ideal for both indoor and outdoor installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Oil Resistant Anaconda AOR | 126mm Diameter | IP67 Rated | Black PVC Cover | @Each by Wattmaster
Brand: Wattmaster
SKU: AOR400
Alternatively Known As: Oil Resistant Flexible Metal Conduit, Liquidtight Metal Conduit, Anaconda AOR Conduit, Oil Resistant Electrical Conduit
Technical Specifications
- Diameter: 126mm
- Length: 7.62 meters
- Temperature Range: -15°C to +100°C (up to +120°C intermittent)
- Material: Continuously interlocked galvanised steel core with cord packing
- Cover: Black thermoplastic PVC, oil and sunlight resistant
- IP Rating: IP67 when installed with approved connectors
- No copper ground wire included
- Uses standard liquid-tight fittings for installation
- Dimensions (H x L x W): 126mm x 7620mm x 126mm
- Weight: 5.5 kg
Key Features
- Provides cable protection in oil rich environments
- Temperature Range: -15°C to +100°C (Up to +120°C intermittent)
- Heavy duty and oil resistant protection of cables
- Continuously interlocked galvanised steel core with cord packing
- Durable, sunlight resistant, black thermoplastic PVC cover
- Thermoplastic PVC cover highly resistant to petroleum and most synthetic oils
- Smooth appearing cover for exposed applications with convenient markings in feet
- No copper ground wire
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Industrial environments with oil exposure
- Cable protection in automotive and manufacturing plants
- Outdoor and indoor installations requiring liquid-tight conduit
- Heavy duty electrical wiring protection in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Oil Resistant Anaconda AOR Liquidtight 126mm Diameter 7.62M Length is available for immediate purchase, ideal for industrial and commercial cable protection in oil-rich environments.
