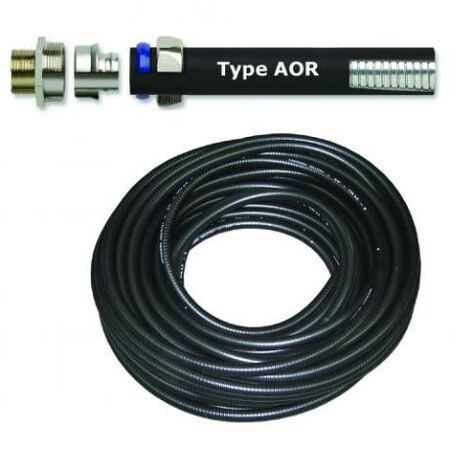

Flexible Metal Conduit Oil Resistant Anaconda AOR | 95mm Diameter | IP67 Rated | Black PVC Cover | by Wattmaster
Flexible Metal Conduit Oil Resistant Anaconda AOR is designed for industrial cable protection in oil-rich environments. With a 95mm diameter and IP67 rating, it ensures reliable performance in both indoor and outdoor applications. The durable black thermoplastic PVC cover is resistant to petroleum and synthetic oils, making it ideal for heavy-duty wiring in manufacturing and processing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Oil Resistant Anaconda AOR | 95mm Diameter | IP67 Rated | Black PVC Cover | by Wattmaster
Brand: Wattmaster
SKU: AOR300
Alternatively Known As: Oil Resistant Flexible Metal Conduit, Liquidtight Metal Conduit, Anaconda AOR Conduit, Oilproof Flexible Conduit
Technical Specifications
- Diameter: 95mm
- Length: 7.62 meters
- Temperature Range: -15°C to +100°C (up to +120°C intermittent)
- Core: Continuously interlocked galvanized steel with cord packing
- Cover: Black thermoplastic PVC, oil and sunlight resistant
- IP Rating: IP67 with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 95mm x 7620mm x 95mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in oil-rich environments
- Temperature range from -15°C to +100°C, with intermittent exposure up to +120°C
- Heavy duty and oil resistant protection for cables
- Continuously interlocked galvanized steel core with cord packing
- Durable, sunlight resistant black thermoplastic PVC cover
- Compatible with standard liquid-tight fittings for easy installation
- Thermoplastic PVC cover highly resistant to petroleum and most synthetic oils
- Smooth cover appearance with convenient markings in feet
- No copper ground wire included
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Industrial cable protection in oil-rich environments
- Electrical installations requiring liquid-tight conduit protection
- Outdoor and indoor use where oil resistance is necessary
- Heavy-duty wiring protection in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Flexible Metal Conduit Oil Resistant Anaconda AOR Liquidtight 95mm Diameter 7.62M Length is available for immediate purchase, ideal for industrial and commercial electrical installations requiring oil-resistant cable protection.
