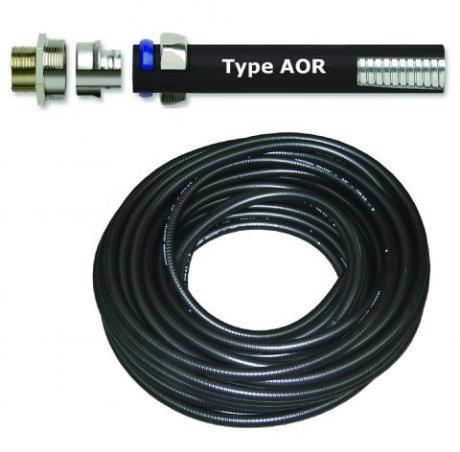

Flexible Metal Conduit | Oil Resistant & Liquidtight | 40mm Diameter | Black | @Each by Wattmaster
Flexible Metal Conduit designed for oil resistance and liquid-tight applications, featuring a durable black thermoplastic PVC cover and a continuously interlocked galvanised steel core. Ideal for industrial and commercial electrical installations, this conduit ensures reliable protection in oil-rich environments and is compliant with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit | Oil Resistant & Liquidtight | 40mm Diameter | Black | @Each by Wattmaster
Brand: Wattmaster
SKU: AOR114-15
Alternatively Known As: Oil Resistant Flexible Metal Conduit, Liquidtight Metal Conduit, Anaconda AOR Conduit, Oilproof Flexible Conduit
Technical Specifications
- Diameter: 40mm
- Length: 15m
- Temperature Range: -15°C to +100°C (up to +120°C intermittent)
- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic PVC, oil and sunlight resistant
- IP Rating: IP67 with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 40mm x 15000mm x 40mm
- Weight: 3.5 kg
Key Features
- Provides heavy duty and oil resistant protection of cables
- Continuously interlocked galvanised steel core with cord packing
- Durable, sunlight resistant, black thermoplastic PVC cover
- Thermoplastic PVC cover highly resistant to petroleum and most synthetic oils
- Smooth appearing cover with convenient markings in feet
- IP67 rating when installed with approved connectors
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Industrial cable protection in oil-rich environments
- Electrical installations requiring liquid-tight conduit protection
- Outdoor and indoor use where sunlight and oil resistance is needed
- Heavy duty wiring protection in manufacturing and automotive sectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight and oil resistance extends product life in harsh environments
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
Available for immediate purchase, ideal for industrial and commercial electrical conduit applications requiring oil and liquid-tight protection.
