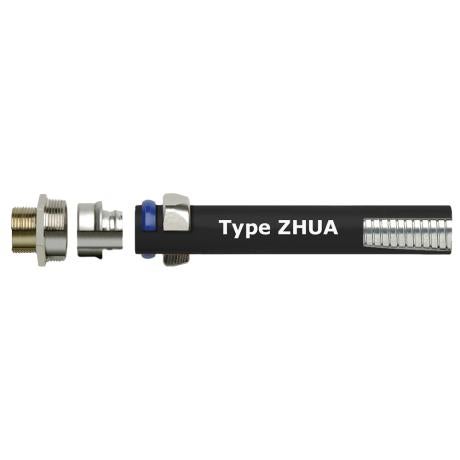

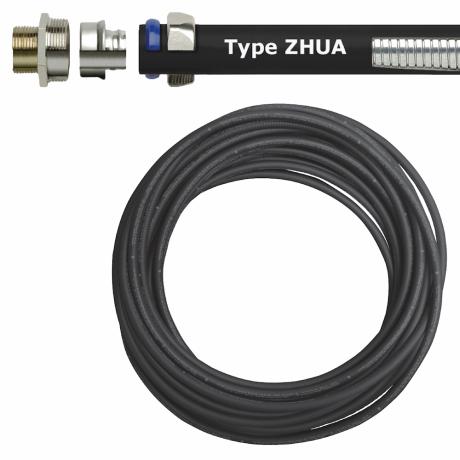

Flexible Metal Conduit Zero Halogen | 16mm Diameter | Low Smoke & IP67 Rated | @Each by Wattmaster
Flexible Metal Conduit Zero Halogen is designed for optimal cable protection in restricted ventilation areas. With a durable 16mm diameter and IP67 rating, it’s perfect for both exposed and concealed installations. Built from hot dipped zinc galvanized steel and a flame retardant TPU jacket, this conduit ensures safety in environments requiring low smoke emissions, making it ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Zero Halogen | 16mm Diameter | Low Smoke & IP67 Rated | @Each by Wattmaster
Brand: Wattmaster
SKU: ZHUA38-30
Alternatively Known As: Flexible Metal Conduit, Zero Halogen Conduit, Low Smoke Conduit, Anaconda ZHUA Conduit, Metal Cable Protection Conduit
Technical Specifications
- Diameter: 16mm
- Length: 30 meters
- Core Material: Continuously interlocked hot dipped zinc galvanized steel
- Jacket Material: TPU, flame retardant, sunlight resistant, low smoke, zero halogen
- Protection Rating: IP67 with approved connectors
- Compliance: UL Standard 360 File No. E18917
- Temperature Resistance: Suitable for extreme temperature applications
- Approved for direct burial and both exposed and concealed locations
- Dimensions (H x L x W): 16mm x 30000mm x 16mm
- Weight: 2.5 kg
Key Features
- Provides cable protection for restricted or self-contained ventilation areas
- Complies with UL Standard 360 File No. E18917
- Dust and liquid tight protection with zero halogen, low smoke conduit
- Constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance
- Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket resistant to heat, oil and chemical breakdown
- Designed for extreme temperature applications
- Meets demands of higher temperature rated conductors
- Approved for both exposed and concealed locations
- Approved for direct burial
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Cable protection in restricted or self-contained ventilation areas
- Suitable for exposed and concealed electrical installations
- Direct burial applications
- Environments requiring zero halogen and low smoke emission conduits
- Industrial and commercial electrical wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen and low smoke emissions reduce toxic gas release during fire, enhancing safety and environmental protection
- Durable construction extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Flexible Metal Conduit Zero Halogen Low Smoke Anaconda ZHUA 16mm 30m Black is available for immediate purchase, ideal for industrial, commercial, and residential electrical protection applications.
