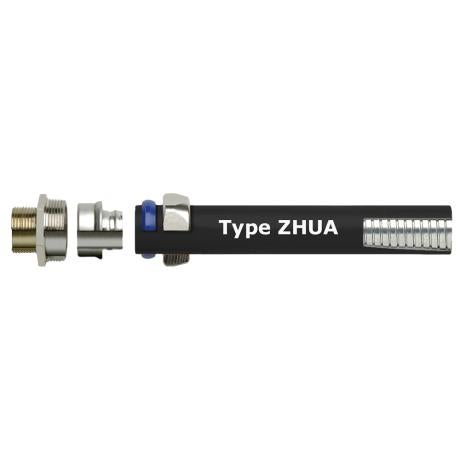

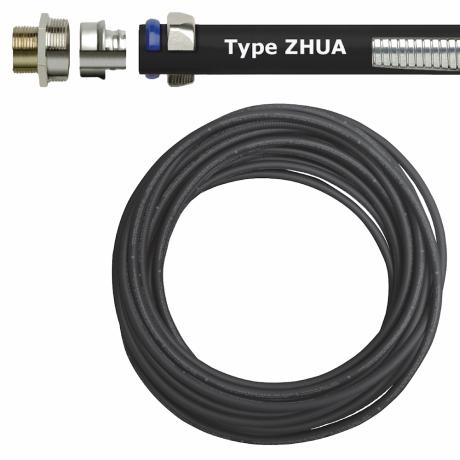

Flexible Metal Conduit Zero Halogen | 20mm Diameter | Low Smoke & Dust Tight | @Each by Wattmaster

BRAND: Wattmaster
SKU: ZHUA12-30
$1,632.30 List price: $1,975.60
+ −
30 Days Return Delivery Options
Flexible Metal Conduit Zero Halogen is designed for optimal cable protection in restricted ventilation areas. With a durable 20mm diameter and low smoke emissions, it's perfect for industrial and commercial electrical installations. This conduit is constructed from hot dipped zinc galvanized steel, ensuring exceptional crush resistance and compliance with UL Standard 360, making it ideal for extreme temperature applications.

Product Name/Title: Flexible Metal Conduit Zero Halogen | 20mm Diameter | Low Smoke & Dust Tight | @Each by Wattmaster

Brand: Wattmaster

SKU: ZHUA12-30

Alternatively Known As: Flexible Metal Conduit, Zero Halogen Conduit, Low Smoke Conduit, Anaconda ZHUA Conduit, Electrical Protective Conduit

Technical Specifications
  • Diameter: 20mm
  • Length: 30m
  • Core: Continuously interlocked hot dipped zinc galvanized steel
  • Jacket: TPU, sunlight resistant, flame retardant, low smoke, zero halogen
  • Protection: Dust and liquid tight
  • Temperature rating: Suitable for extreme temperature applications
  • IP Rating: IP67 with approved connectors
  • Compliance: UL Standard 360 File No. E18917
  • Dimensions (H x L x W): 20mm x 30000mm x 20mm
  • Weight: 2.5 kg
Key Features
  • Provides cable protection for restricted or self-contained ventilation areas
  • Complies with UL Standard 360 File No. E18917
  • Dust and liquid tight protection with zero halogen, low smoke conduit
  • Constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance
  • Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket resistant to heat, oil and chemical breakdown
  • Designed for extreme temperature applications
  • Meets demands of higher temperature rated conductors
  • Approved for both exposed and concealed locations
  • Approved for direct burial
  • IP67 rating when installed with approved connectors
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and proper sealing for IP67 rating.
Applications
  • Cable protection in restricted or self-contained ventilation areas
  • Suitable for exposed and concealed electrical installations
  • Direct burial applications
  • Environments requiring zero halogen and low smoke emissions
  • Industrial and commercial electrical conduit installations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Zero halogen and low smoke emissions reduce toxic gas release during fire, improving safety and environmental impact
  • Durable materials extend product life reducing waste
  • Corrosion resistance reduces need for replacement and maintenance
Warranty Information

Warranty terms as provided by Wattmaster, typically covering manufacturing defects.

Available Now

The Wattmaster Flexible Metal Conduit Zero Halogen Low Smoke Anaconda ZHUA 20mm x 30m Black is available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications requiring high safety and durability.
