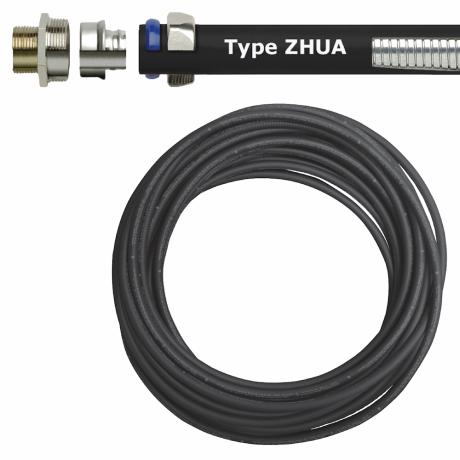

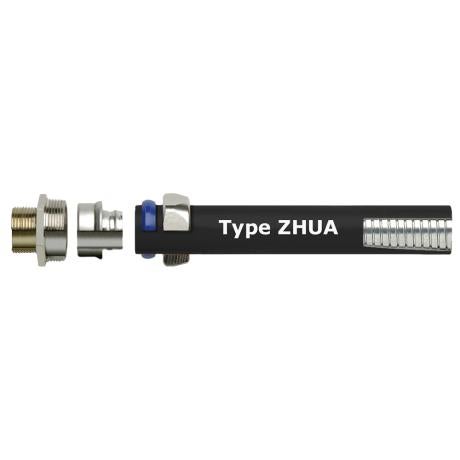

Flexible Metal Conduit Zero Halogen | 25mm Diameter | IP67 Rated | Low Smoke TPU Jacket | by Wattmaster
Flexible Metal Conduit Zero Halogen is designed for superior cable protection in restricted ventilation areas, featuring a 25mm diameter and an IP67 rating for dust and liquid tightness. Ideal for industrial and commercial electrical installations, this conduit is constructed with a durable, low smoke, flame retardant TPU jacket, ensuring safety and compliance in environments requiring zero halogen emissions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Zero Halogen | 25mm Diameter | IP67 Rated | Low Smoke TPU Jacket | by Wattmaster
Brand: Wattmaster
SKU: ZHUA34-150
Alternatively Known As: Flexible Metal Conduit, Zero Halogen Conduit, Low Smoke Conduit, Anaconda ZHUA Conduit, Interlocked Metal Conduit
Technical Specifications
- Diameter: 25mm
- Length: 150m
- Material: Hot dipped zinc galvanized steel core with TPU jacket
- Jacket: Zero halogen, low smoke, flame retardant, sunlight resistant
- Protection: Dust and liquid tight, IP67 rating with approved connectors
- Temperature rating: Suitable for extreme temperature applications
- Compliance: UL Standard 360 File No. E18917
- Dimensions (H x L x W): 25mm x 150000mm x 25mm
- Weight: 10 kg
Key Features
- Provides cable protection for restricted or self-contained ventilation areas
- Dust and liquid tight protection with IP67 rating when installed with approved connectors
- Constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance
- Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket
- Resists heat, oil, and chemical breakdown
- Designed for extreme temperature applications
- Meets demands of higher temperature rated conductors
- Approved for both exposed and concealed locations
- Approved for direct burial
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Cable protection in restricted or self-contained ventilation areas
- Suitable for exposed and concealed electrical installations
- Direct burial applications
- Environments requiring zero halogen and low smoke emissions
- Industrial and commercial electrical conduit installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen and low smoke emissions reduce toxic gas release in case of fire
- Durable construction extends product life reducing waste
- Corrosion resistance minimizes environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Flexible Metal Conduit Zero Halogen Low Smoke Anaconda ZHUA 25mm 150m Black is available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications requiring high safety and durability.
