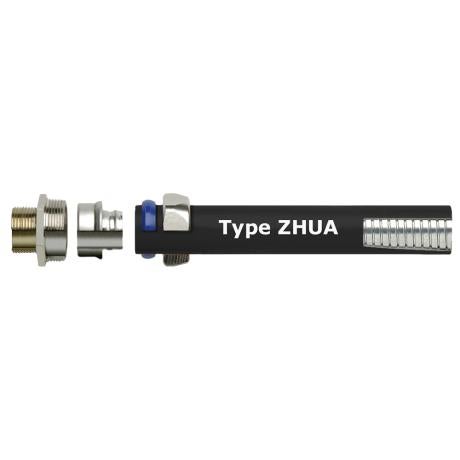

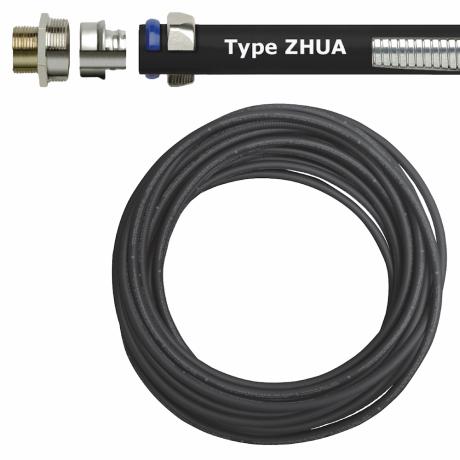

Flexible Metal Conduit Zero Halogen | 25mm Diameter | Low Smoke & Flame Retardant | by Wattmaster
Flexible Metal Conduit Zero Halogen is designed for optimal cable protection in restricted ventilation areas, featuring a durable 25mm diameter and a low smoke, flame retardant TPU jacket. Ideal for industrial and commercial electrical installations, it ensures compliance with UL Standard 360 and provides IP67-rated dust and liquid tight protection, making it perfect for extreme temperature applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Zero Halogen | 25mm Diameter | Low Smoke & Flame Retardant | by Wattmaster
Brand: Wattmaster
SKU: ZHUA34-30
Alternatively Known As: Flexible Metal Conduit, Zero Halogen Conduit, Low Smoke Conduit, Anaconda ZHUA Conduit, Metal Cable Conduit
Technical Specifications
- Diameter: 25mm
- Length: 30 meters
- Core: Continuously interlocked hot dipped zinc galvanized steel
- Jacket: TPU, low smoke, zero halogen, flame retardant, sunlight resistant
- Protection: Dust and liquid tight, IP67 rating with approved connectors
- Temperature: Suitable for extreme temperature applications
- Compliance: UL Standard 360 File No. E18917
- Installation: Approved for exposed, concealed, and direct burial locations
- Dimensions (H x L x W): 25mm x 30000mm x 25mm
- Weight: 3.5 kg
Key Features
- Provides cable protection for restricted or self-contained ventilation areas
- Complies with UL Standard 360 File No. E18917
- Dust and liquid tight protection with IP67 rating when installed with approved connectors
- Constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance
- Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket
- Resists heat, oil, and chemical breakdown
- Designed for extreme temperature applications
- Meets demands of higher temperature rated conductors
- Approved for both exposed and concealed locations
- Approved for direct burial
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Cable protection in restricted or self-contained ventilation areas
- Suitable for exposed and concealed electrical installations
- Direct burial applications
- Environments requiring zero halogen and low smoke emissions
- Industrial and commercial electrical conduit installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen and low smoke emissions reduce toxic gas release during fire incidents
- Durable materials extend product life reducing waste
- Corrosion resistance minimizes environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty terms for details.
Available Now
The Wattmaster Flexible Metal Conduit Zero Halogen Low Smoke Anaconda ZHUA 25mm 30m Black is available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications requiring enhanced safety and durability.
