Flexible Metal Conduit Zero Halogen | 50mm Diameter | Low Smoke & IP67 Rated | by Wattmaster

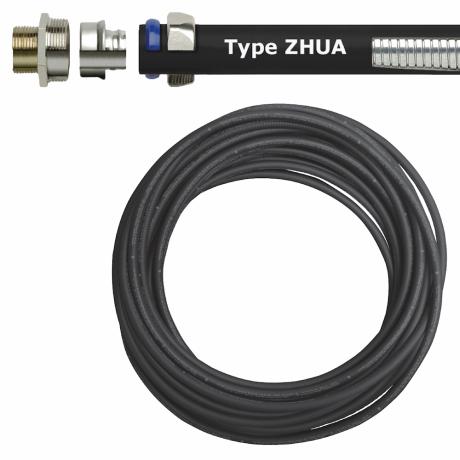

Flexible Metal Conduit Zero Halogen is designed for optimal cable protection in restricted ventilation areas, featuring a durable 50mm diameter and low smoke emissions. Ideal for industrial and commercial electrical installations, this conduit is constructed with a flame retardant TPU jacket and offers IP67 protection when installed with approved connectors, ensuring safety and compliance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Zero Halogen | 50mm Diameter | Low Smoke & IP67 Rated | by Wattmaster
Brand: Wattmaster
SKU: ZHUA112-15
Alternatively Known As: Flexible Metal Conduit, Zero Halogen Conduit, Low Smoke Conduit, Anaconda ZHUA Conduit, Metal Cable Protection Conduit
Technical Specifications
- Diameter: 50mm
- Length: 15m
- Material: Hot dipped zinc galvanized steel core with TPU jacket
- Jacket Properties: Sunlight resistant, flame retardant, low smoke, zero halogen
- Protection Rating: IP67 with approved connectors
- Compliance: UL Standard 360 File No. E18917
- Temperature Rating: Suitable for extreme temperature applications
- Installation: Approved for exposed, concealed, and direct burial locations
- Dimensions (H x L x W): 50mm x 15000mm x 50mm
- Weight: 3.5 kg
Key Features
- Provides cable protection for restricted or self-contained ventilation areas
- Complies with UL Standard 360 File No. E18917
- Dust and liquid tight protection with IP67 rating when installed with approved connectors
- Constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance
- Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket
- Resists heat, oil, and chemical breakdown
- Designed for extreme temperature applications
- Meets demands of higher temperature rated conductors
- Approved for both exposed and concealed locations
- Approved for direct burial
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Cable protection in restricted or self-contained ventilation areas
- Suitable for exposed and concealed electrical installations
- Direct burial applications
- Environments requiring zero halogen and low smoke emissions
- Industrial and commercial electrical conduit installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen and low smoke emissions reduce toxic fume release in case of fire
- Durable materials extend product life reducing waste
- Corrosion resistance minimizes environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty terms for details.
Available Now
The Wattmaster Flexible Metal Conduit Zero Halogen Low Smoke Anaconda ZHUA 50mm x 15m Black is available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications requiring high safety and durability.
