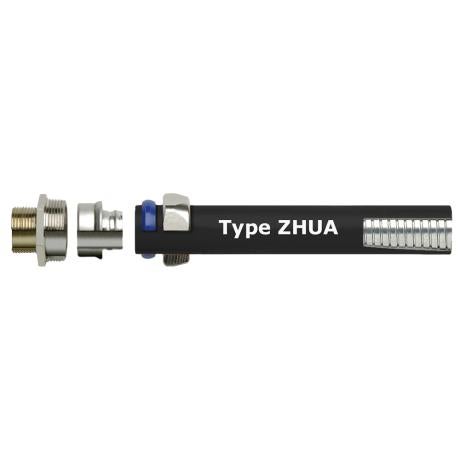

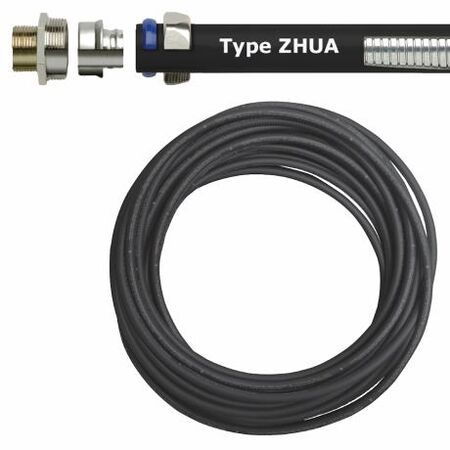

Flexible Metal Conduit Zero Halogen | 63mm Diameter | Low Smoke TPU Jacket | IP67 Rated | by Wattmaster

BRAND: Wattmaster
SKU: ZHUA200-30
$18,678.20 List price: $22,607.10
+ −
30 Days Return Delivery Options
Flexible Metal Conduit Zero Halogen is designed for optimal cable protection in restricted ventilation areas, featuring a durable 63mm diameter and low smoke TPU jacket. Ideal for industrial and commercial electrical installations, it ensures safety with its IP67 rating and compliance with UL Standard 360, making it perfect for environments requiring zero halogen emissions.

Product Name/Title: Flexible Metal Conduit Zero Halogen | 63mm Diameter | Low Smoke TPU Jacket | IP67 Rated | by Wattmaster

Brand: Wattmaster

SKU: ZHUA200-30

Alternatively Known As: Flexible Metal Conduit, Zero Halogen Conduit, Low Smoke Conduit, Anaconda ZHUA Conduit, Metal Electrical Conduit

Technical Specifications
  • Diameter: 63mm
  • Length: 30 meters
  • Core Material: Continuously interlocked hot dipped zinc galvanized steel
  • Jacket Material: TPU, flame retardant, sunlight resistant, low smoke, zero halogen
  • Protection Rating: IP67 with approved connectors
  • Compliance: UL Standard 360 File No. E18917
  • Temperature Rating: Suitable for extreme temperature applications
  • Approved for direct burial and both exposed and concealed locations
  • Dimensions (H x L x W): 630mm x 30000mm x 630mm
  • Weight: 5.5 kg
Key Features
  • Provides cable protection for restricted or self-contained ventilation areas
  • Complies with UL Standard 360 File No. E18917
  • Dust and liquid tight protection with IP67 rating when installed with approved connectors
  • Constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance
  • Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket resistant to heat, oil, and chemical breakdown
  • Designed for extreme temperature applications
  • Meets demands of higher temperature rated conductors
  • Approved for both exposed and concealed locations
  • Approved for direct burial
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
  • Cable protection in restricted or self-contained ventilation areas
  • Suitable for exposed and concealed electrical installations
  • Direct burial applications
  • Environments requiring zero halogen and low smoke emissions
  • Industrial and commercial electrical conduit installations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Zero halogen and low smoke emissions reduce toxic gas release during fire incidents, enhancing safety and environmental protection
  • Durable materials extend product life, reducing waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies; typically 1-3 years against manufacturing defects.

Available Now

The Wattmaster Flexible Metal Conduit Zero Halogen Low Smoke Anaconda ZHUA 63mm 30m is available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications requiring high safety standards.
