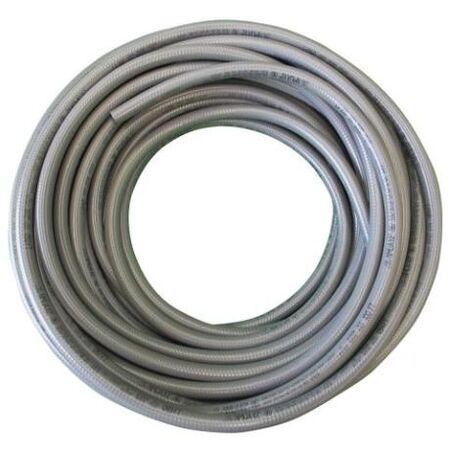

Flexible PVC Anaconda NMUA Liquidtight Conduit | 32mm Diameter | IP67 Rated | Sunlight Resistant | @Each by Wattmaster
The Flexible PVC Anaconda NMUA Liquidtight Conduit is designed for superior electrical wiring protection in harsh environments. With a 32mm diameter and IP67 rating, it offers exceptional resistance to heat, oil, and chemicals, making it ideal for both residential and industrial applications. Its durable, sunlight-resistant construction ensures longevity, while the smooth cover allows for easy measurement and installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible PVC Anaconda NMUA Liquidtight Conduit | 32mm Diameter | IP67 Rated | Sunlight Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: NMUA100-30
Alternatively Known As: Flexible PVC Conduit, Liquidtight Conduit, NMUA Conduit, Non-Metallic Flexible Conduit, Grey PVC Electrical Conduit
Technical Specifications
- Material: Thermoplastic PVC
- Size: 32mm diameter
- Length: 30 meters
- IP Rating: IP67
- Temperature Resistance: Suitable for high and low temperature conditions
- Compliance: NEC Article 356, UL Standard 1660, CSA 22.2
- No copper ground wire included
- Sunlight resistant and flame retardant
- Dimensions (H x L x W): 32mm x 30000mm x 32mm
- Weight: 2.5 kg
Key Features
- Superior heat, oil, and chemical resistance in high and low temperature conditions
- Rigid, non-metallic construction with reinforced embedded wall for exceptional crush, abrasion, strain, and corrosion resistance
- Durable, sunlight resistant, and flame retardant grey thermoplastic PVC cover
- Smooth cover with convenient markings in feet for easy measurement

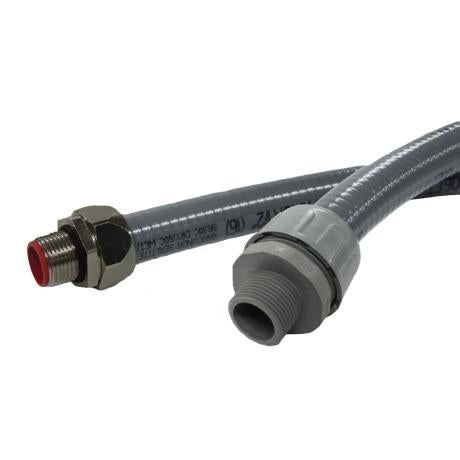

- Uses standard liquid-tight fittings for easy installation
- Approved for direct burial
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper use of liquid-tight fittings.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Suitable for direct burial and outdoor applications
- Ideal for environments requiring resistance to heat, oil, chemicals, and abrasion
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Conduit Flexible PVC Anaconda NMUA Liquidtight 32mm Grey 30m is available for immediate purchase, ideal for electrical wiring protection in harsh and outdoor environments.
