Trade Discount 17%

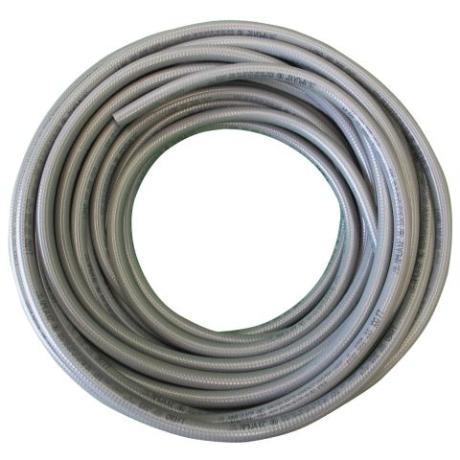

Flexible PVC Anaconda NMUA Liquidtight Conduit | 40mm Diameter | IP67 Rated | Sunlight Resistant | @Each by Wattmaster
Flexible PVC Anaconda NMUA Liquidtight Conduit is designed for superior electrical wiring protection in harsh environments. With a 40mm diameter and IP67 rating, it offers exceptional heat, oil, and chemical resistance, making it ideal for both residential and industrial applications. Its durable, sunlight-resistant construction ensures long-lasting performance, while the reinforced wall provides crush and abrasion resistance for added safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible PVC Anaconda NMUA Liquidtight Conduit | 40mm Diameter | IP67 Rated | Sunlight Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: NMUA114-15
Alternatively Known As: Flexible PVC Conduit, Liquidtight Conduit, NMUA Conduit, Non-Metallic Flexible Conduit, Anaconda NMUA Liquidtight Conduit
Technical Specifications
- Material: Thermoplastic PVC
- Size: 40mm diameter
- Length: 15 meters
- IP Rating: IP67
- Temperature Resistance: Suitable for high and low temperature conditions
- Compliance: NEC Article 356, UL Standard 1660, CSA 22.2
- Construction: Reinforced embedded wall for crush and abrasion resistance
- Sunlight resistant and flame retardant
- Dimensions (H x L x W): 40mm x 15000mm x 40mm
- Weight: 2.5 kg
Key Features
- Superior heat, oil, and chemical resistance in extreme temperature conditions
- Rigid, non-metallic construction with reinforced embedded wall for crush, abrasion, strain, and corrosion resistance
- Durable, sunlight resistant, and flame retardant grey thermoplastic PVC cover
- Smooth cover with convenient markings in feet for easy measurement

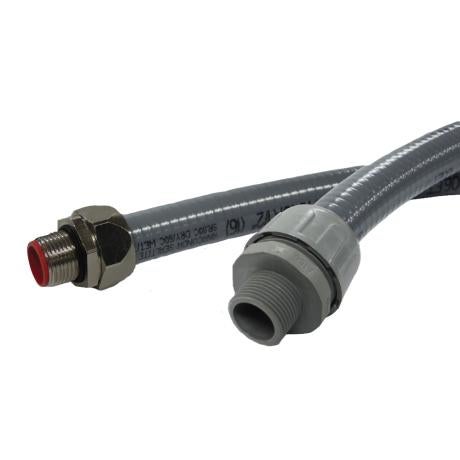

- Uses standard liquid-tight fittings for easy installation
- Approved for direct burial
- No copper ground wire
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper sealing of liquid-tight fittings.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Suitable for environments with high or low temperature conditions
- Direct burial applications requiring durable and corrosion-resistant conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Conduit Flexible PVC Anaconda NMUA Liquidtight 40mm Grey 15m is available for immediate purchase, ideal for electrical wiring protection in harsh and outdoor environments.
