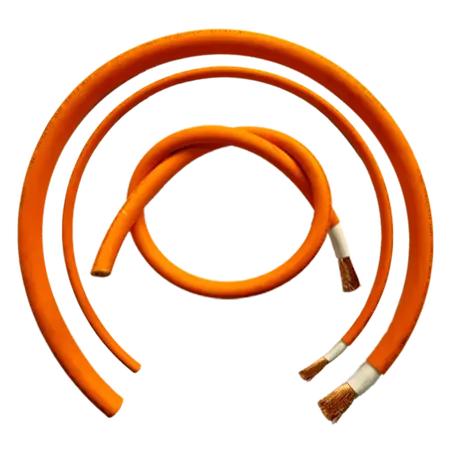

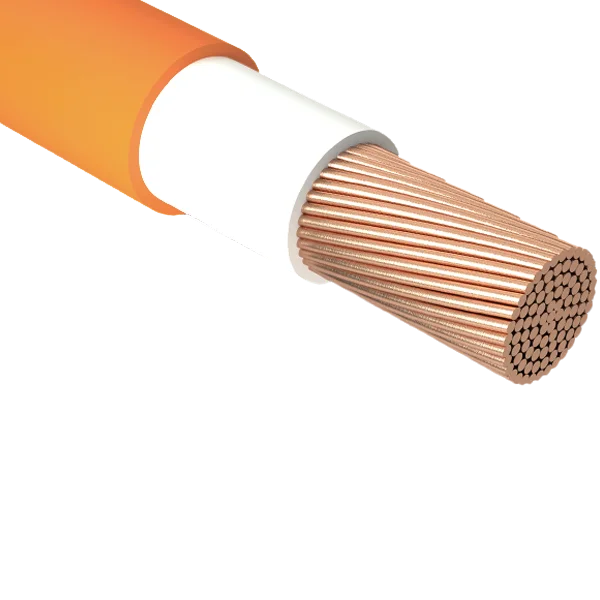

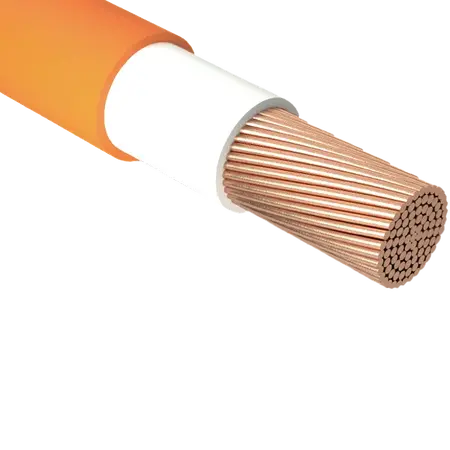

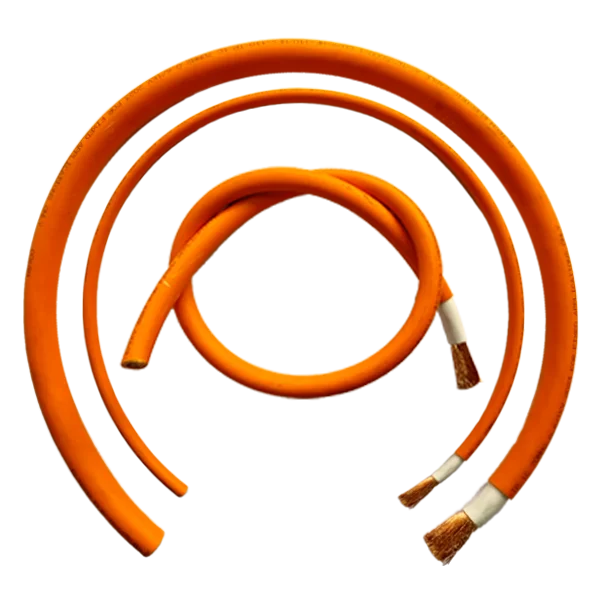

Flexible SDI LSZH Cable 240mm | 0.6/1kV Voltage | 110°C Rating | Orange | Per 5m by Eltech
Flexible SDI LSZH cable with a 240mm² size and rated for 0.6/1kV voltage—ideal for industrial and commercial power distribution. Built for high temperature resistance up to 110°C, with low smoke zero halogen insulation for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible SDI 110°C LSZH Cable 240mm 0.6/1kV Orange
Brand: Eltech
SKU: SDI240-110-ENV
Alternatively Known As: Flexible SDI Cable, LSZH Power Cable, High Temperature Power Cable, 0.6/1kV Flexible Cable
Technical Specifications
- Cable Size: 240mm²
- Voltage Rating: 0.6/1kV
- Temperature Rating: 110°C
- Insulation Type: Low Smoke Zero Halogen (LSZH)
- Color: Orange
- Drum Length: 500m
- Minimum Order Quantity: 5m
- Dimensions (H x L x W): 10mm x 500000mm x 240mm
- Weight: 5 kg
Key Features
- Flexible design for ease of installation
- Low Smoke Zero Halogen (LSZH) insulation for enhanced safety
- Rated for 0.6/1kV voltage applications
- High temperature resistance up to 110°C
- Orange color for easy identification
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and optimal cable performance.
Applications
- Power distribution in industrial and commercial electrical installations
- Suitable for use in environments requiring low smoke zero halogen cables
- Ideal for installations requiring high temperature resistance up to 110°C
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) insulation reduces toxic emissions in case of fire
- Durable construction extends cable life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty terms for details.
Available Now
The Eltech Flexible SDI 110°C LSZH Cable 240mm 0.6/1kV Orange is available now for immediate purchase. Ideal for industrial and commercial power cable installations requiring high temperature and safety standards.
