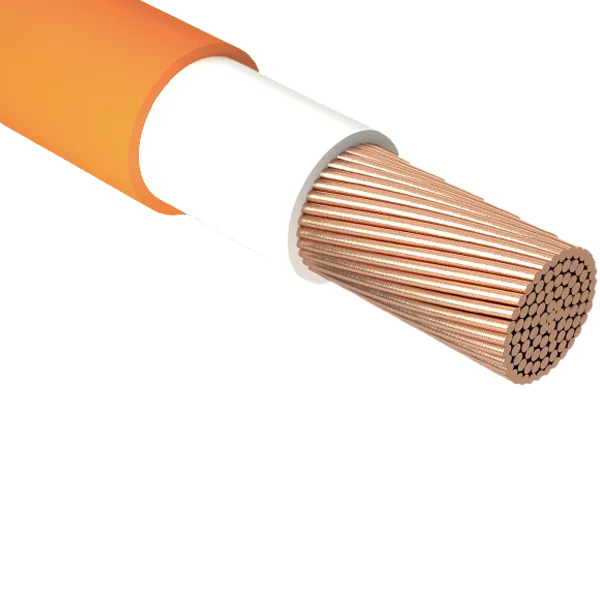

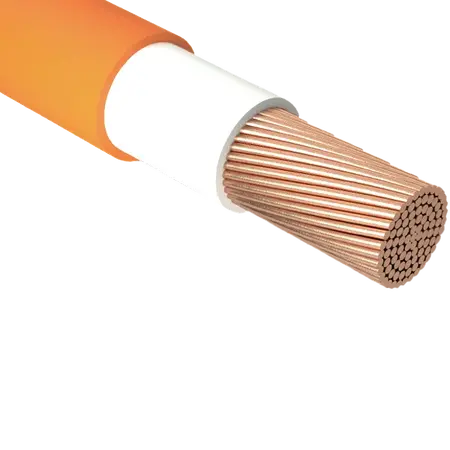

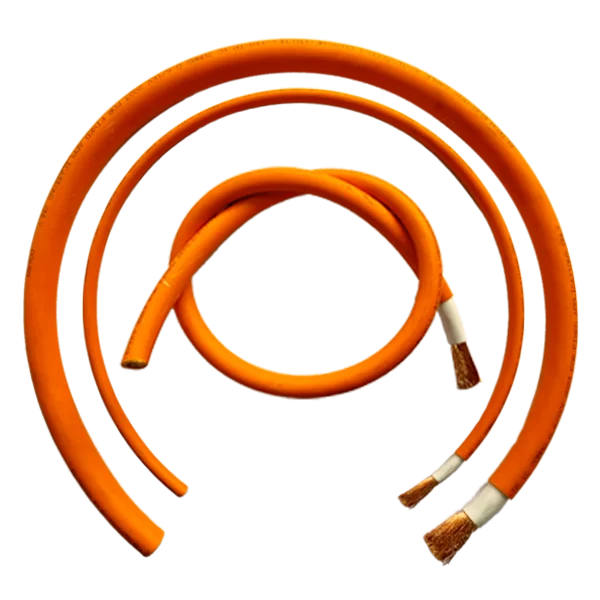

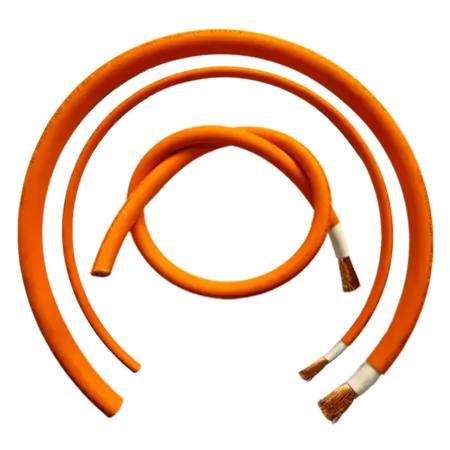

Flexible SDI LSZH Cable 25mm 0.6/1kV | Heat Resistant & Low Smoke | Orange | Per 5m by Eltech
Flexible SDI LSZH cable with a 25mm size and 0.6/1kV voltage rating—ideal for industrial and commercial power distribution. Built for environments requiring heat resistance and low smoke emissions, ensuring safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible SDI 110°C LSZH Cable 25mm 0.6/1kV Orange
Brand: Eltech
SKU: SDI025-110-ENV
Alternatively Known As: Flexible SDI Cable, LSZH Power Cable, 110°C Rated Cable, Orange Power Cable 25mm
Technical Specifications
- Cable Size: 25mm
- Voltage Rating: 0.6/1kV
- Temperature Rating: 110°C
- Material: Low Smoke Zero Halogen (LSZH)
- Color: Orange
- Drum Length: 500m
- Minimum Order Quantity: 5m
- Dimensions (H x L x W): 25mm x 500000mm x 25mm
- Weight: 1.5 kg
Key Features
- Flexible design for ease of installation in complex environments
- Heat resistant up to 110°C
- Low Smoke Zero Halogen (LSZH) for enhanced fire safety
- Voltage rating of 0.6/1kV suitable for medium voltage power applications
- Bright orange color for high visibility and safety
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal cable performance.
Applications
- Power distribution in industrial and commercial electrical installations
- Suitable for use in environments requiring flexible, heat-resistant cabling
- Ideal for installations requiring low smoke zero halogen (LSZH) cables for safety
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) material reduces toxic emissions and smoke in case of fire, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Flexible SDI 110°C LSZH Cable 25mm 0.6/1kV Orange is available now for immediate purchase. Ideal for industrial and commercial power cable installations requiring flexible, heat-resistant, and low smoke zero halogen cables.
