Trade Discount 17%

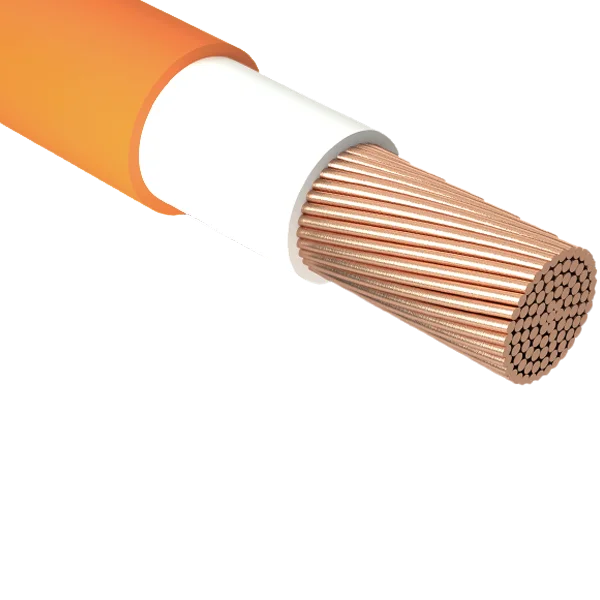

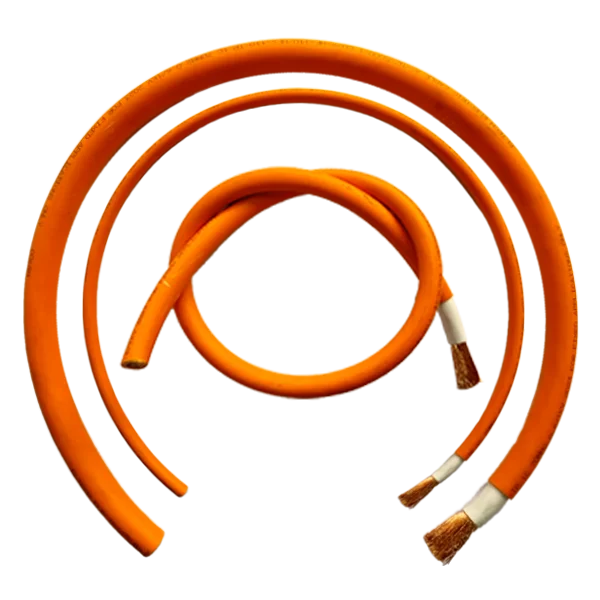

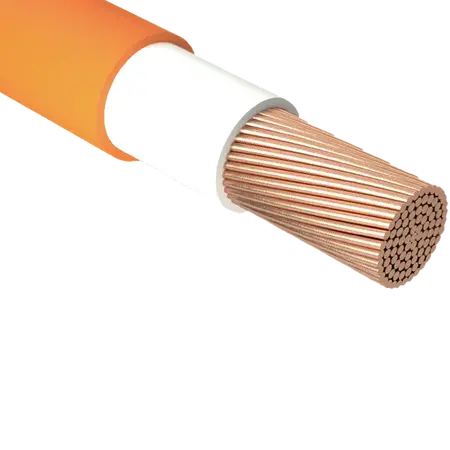

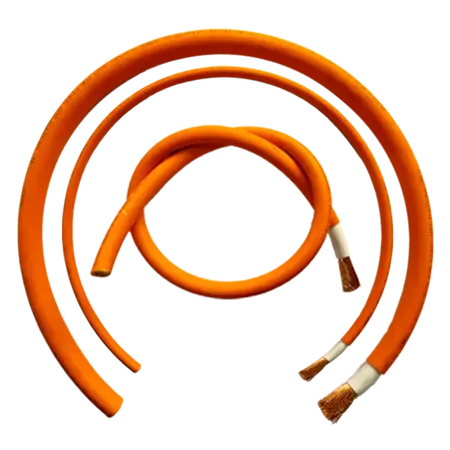

Flexible SDI LSZH Cable 300mm | 0.6/1kV Voltage | 110°C Rating | Orange | Per 5m by Eltech
Flexible SDI LSZH cable with a 300mm² size and rated for 0.6/1kV voltage—ideal for industrial power distribution. Built for environments requiring high temperature resistance up to 110°C, with low smoke zero halogen insulation for enhanced fire safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible SDI 110°C LSZH Cable 300mm 0.6/1kV Orange
Brand: Eltech
SKU: SDI300-110-ENV
Alternatively Known As: Flexible SDI Cable, LSZH Power Cable, High Temperature Power Cable, 0.6/1kV Flexible Cable
Technical Specifications
- Cable Size: 300mm²
- Voltage Rating: 0.6/1kV
- Temperature Rating: 110°C
- Insulation Type: Low Smoke Zero Halogen (LSZH)
- Color: Orange
- Drum Length: 500m
- Minimum Order Quantity: 5m
- Dimensions (H x L x W): 10mm x 500000mm x 300mm
- Weight: 0.5 kg
Key Features
- Flexible design for easy installation
- Low Smoke Zero Halogen (LSZH) insulation for enhanced fire safety
- Rated for 0.6/1kV voltage applications
- High temperature resistance up to 110°C
- Orange color for easy identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal performance.
Applications
- Power distribution in industrial and commercial electrical installations
- Use in environments requiring low smoke zero halogen (LSZH) cables for safety
- Suitable for wiring in areas with temperature exposure up to 110°C
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) insulation reduces toxic gas emissions in case of fire, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Flexible SDI 110°C LSZH Cable 300mm 0.6/1kV Orange is available now for immediate purchase. Ideal for industrial and commercial power cable applications requiring high temperature and fire safety standards.
