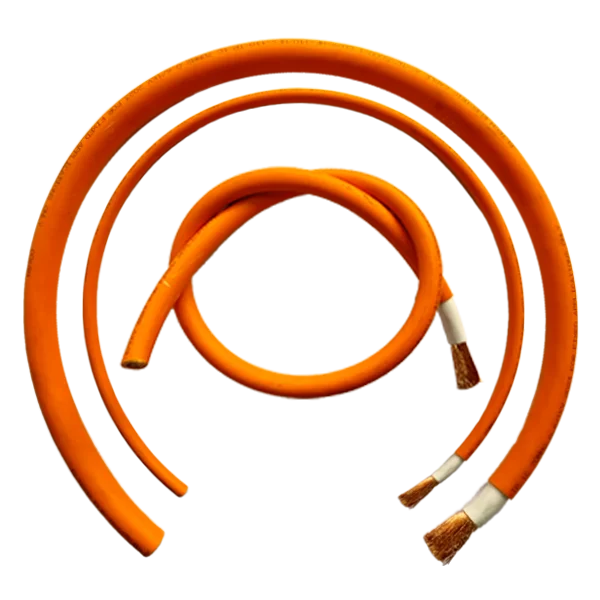

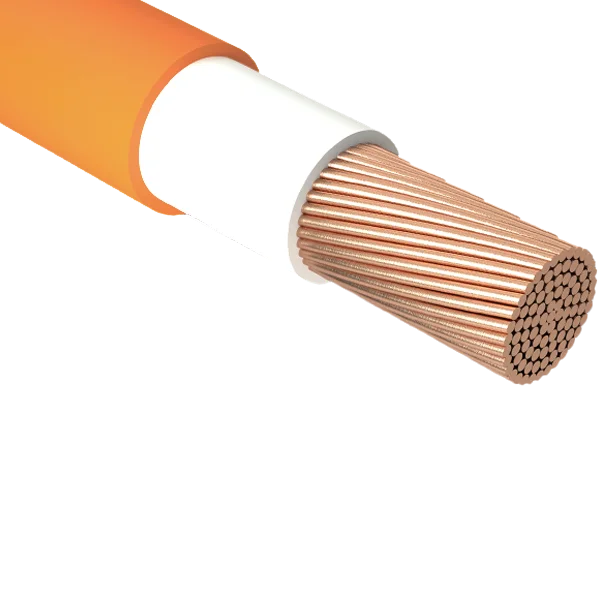

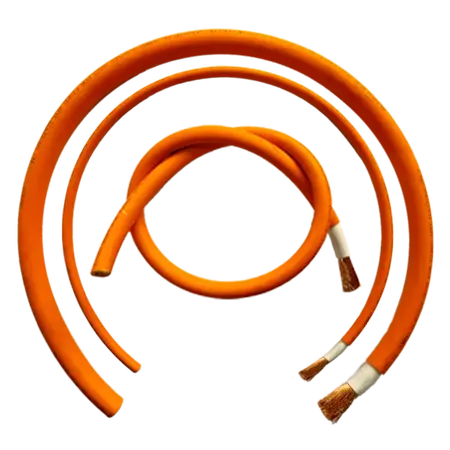

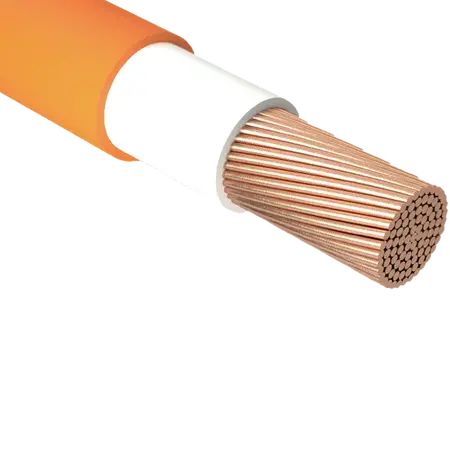

Flexible SDI LSZH Cable 35mm 0.6/1kV | 110°C Rated | Low Smoke Insulation | Orange | Per 5m by Eltech
Flexible SDI LSZH cable with a 35mm² conductor and 0.6/1kV voltage rating—ideal for industrial and commercial power distribution. Built for environments requiring heat resistance, with low smoke zero halogen insulation for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible SDI 110°C LSZH Cable 35mm 0.6/1kV Orange
Brand: Eltech
SKU: SDI035-110-ENV
Alternatively Known As: Flexible Power Cable 35mm, LSZH Power Cable, 110°C Rated Cable, Orange Flexible Electrical Cable
Technical Specifications
- Conductor Size: 35mm²
- Voltage Rating: 0.6/1kV
- Temperature Rating: 110°C
- Insulation: Low Smoke Zero Halogen (LSZH)
- Colour: Orange
- Drum Length: 500m
- Minimum Order Quantity: 5m
- Dimensions (H x L x W): 35mm x 500000mm x 35mm
- Weight: 1.5 kg
Key Features
- Flexible design for ease of installation in complex layouts
- Rated for continuous operation at 110°C
- Low Smoke Zero Halogen (LSZH) insulation for enhanced safety in case of fire
- Voltage rating of 0.6/1kV suitable for medium voltage power applications
- Bright orange sheath for high visibility and easy identification
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and optimal cable performance.
Applications
- Power distribution in industrial and commercial electrical installations
- Suitable for use in environments requiring flexible, heat-resistant cabling
- Ideal for wiring in machinery, switchboards, and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) insulation reduces toxic emissions and smoke in fire situations, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Eltech warranty policy for details.
Available Now
The Eltech Flexible SDI 110°C LSZH Cable 35mm 0.6/1kV Orange is available now for immediate purchase. Ideal for industrial and commercial power cable applications requiring flexibility and high temperature resistance.
