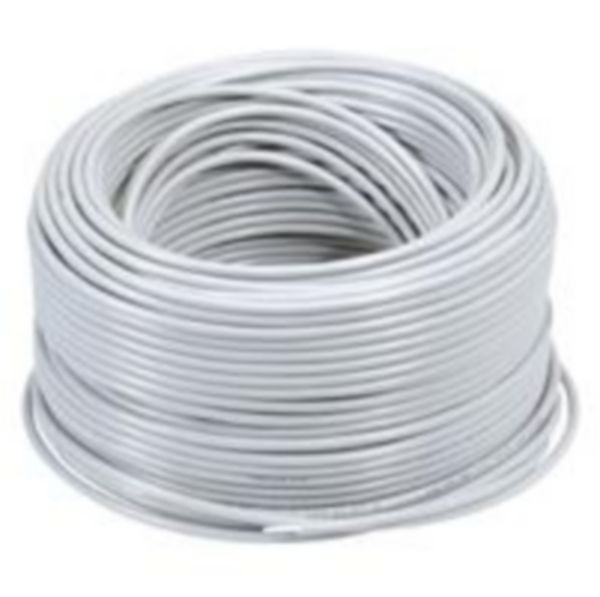

Flexible Sheathed Pair Wire Cable | 2 Copper Wires | 500V Rating | Grey PVC Sheath | @RL of 1 | by Bticino
The Flexible Sheathed Pair Wire Cable features two flexible copper wires encased in a durable grey PVC sheath, making it ideal for home and building wiring applications. With a nominal voltage rating of 500V and a conductor temperature rating of up to 70°C, this cable is perfect for residential and commercial electrical installations, ensuring safety and compliance with AS/NZS 3000 Wiring Rules.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Sheathed Pair Wire Cable | 2 Copper Wires | 500V Rating | Grey PVC Sheath | @RL of 1 | by Bticino
Brand: Bticino
SKU: L4669/500
Alternatively Known As: Flexible Lighting Cable, Sheathed Twin Wire Cable, PVC Sheathed Electrical Wire
Technical Specifications
- Conductor Material: Copper
- Nominal Cross Section: 0.35 mm²
- Conductor Diameter: 1.95 mm
- Conductor Category: Class 2 stranded
- Number of Cores: 2
- Core Insulation Material: Polyvinyl Chloride (PVC)
- Outer Sheath Material: Polyvinyl Chloride (PVC)
- Outer Sheath Colour: Grey
- Nominal Voltage U0: 300 V
- Nominal Voltage U: 500 V
- Maximum Conductor Temperature: 70 °C
- Permitted Cable Outer Temperature During Handling: -15 to 70 °C
- Low Smoke: No
- Screen: No
- Drain Wire: No
- Protective Barrier: None
- Armouring/Reinforcement: None
- Dimensions (H x L x W): 5mm x 500000mm x 5mm
- Weight: 3.5 kg
Key Features
- Sheathed pair made up of 2 flexible copper wires
- Unshielded plaited grey PVC outer sheath
- Nominal voltage rating of 500 V
- Conductor temperature rating up to 70 °C
- Class 2 stranded conductor for flexibility
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules to ensure safety and compliance.
Applications
- Home and building wiring for lighting circuits
- Residential and commercial electrical installations
- General purpose flexible wiring in electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC sheath protects conductors, reducing cable damage and waste
- Copper conductors are recyclable and support sustainable material use
Warranty Information
Standard manufacturer warranty applies. Please refer to Bticino warranty terms for details.
Available Now
The Bticino Sheathed Pair Flexible Wire Cable 500m is available for immediate purchase, ideal for lighting wiring in residential and commercial buildings.
