Flexible Stainless Steel Conduit 20mm | UV Stabilised PVC Jacket | IP66 Rated | 25m by Cabac

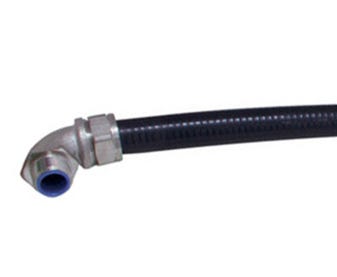

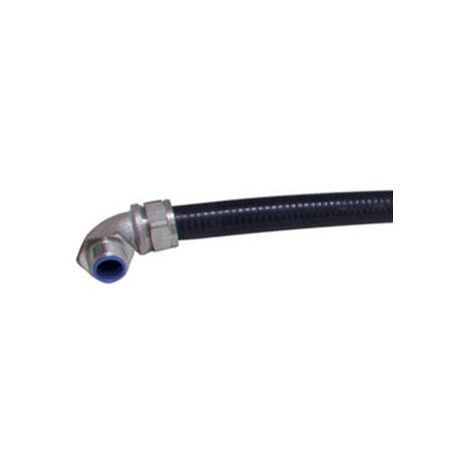

The Cabac CONDUIT CSS SS304 PVC NC20 X 25M BLACK is a heavy duty flexible stainless steel conduit with a UV stabilised PVC jacket, offering excellent corrosion resistance and mechanical protection for indoor and outdoor cable installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT CSS SS304 PVC NC20 X 25M BLACK
Brand: Cabac
SKU: CSS20BK
Alternatively Known As: Flexible Stainless Steel Conduit, SS304 Flexible Conduit, PVC Coated Stainless Steel Conduit, Heavy Duty Flexible Conduit
Technical Specifications
- Material: 304-grade stainless steel core with PVC jacket
- Temperature Rating: -10 to +105 degrees Celsius
- Nominal Size: 20mm
- Trade Size: 1/2 inch
- Inner Diameter (ID): 16.1mm
- Outer Diameter (OD): 21.1mm
- Minimum Bend Radius: 65mm
- Length: 25 meters
- Dimensions (H x L x W): 21mm x 25000mm x 21mm
- Weight: 2.5 kg
Key Features
- Flexible 304-grade stainless steel core for superior corrosion resistance
- UV stabilised black PVC jacket providing liquid tight protection
- Non-flame propagating and resistant to most oils, acids, and vapours
- Compression resistant to HD rating of 1250 Newtons
- Operating temperature range from -10 to +105 degrees Celsius
- IP66 rating with CABFLX fittings for environmental protection
Professional Installation Requirements
- Installation by a qualified electrician or professional experienced with flexible conduit systems is recommended to ensure compliance with electrical safety standards.
Applications
- Indoor and outdoor cable installations requiring corrosion resistance
- Harsh environments with exposure to oils, acids, and vapours
- Electrical and data cable protection in industrial and commercial settings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- UV stabilised PVC jacket extends product life in outdoor environments
- Corrosion resistance reduces environmental contamination risks
Warranty Information
Standard manufacturer warranty against defects in materials and workmanship.
Available Now
The Cabac CONDUIT CSS SS304 PVC NC20 X 25M BLACK is available now for immediate purchase. Ideal for industrial, commercial, and residential cable protection applications requiring corrosion resistance and flexibility.
