Flexible Stainless Steel Conduit 25mm | UV Stabilised PVC Jacket | Corrosion Resistant | IP66 Rated by Cabac

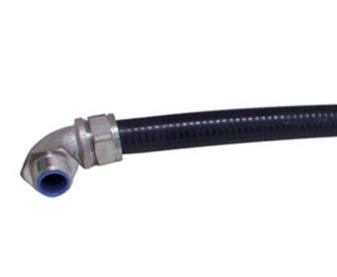

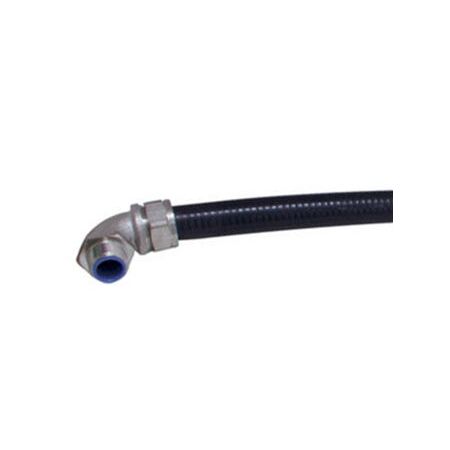

The Cabac CONDUIT CSS SS304 PVC NC25 X 25M BLACK is a heavy-duty flexible stainless steel conduit with a UV stabilised PVC jacket, offering excellent corrosion resistance and mechanical protection for indoor and outdoor cable installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT CSS SS304 PVC NC25 X 25M BLACK
Brand: Cabac
SKU: CSS25BK
Alternatively Known As: Flexible Stainless Steel Conduit, SS304 Flexible Conduit, PVC Coated Stainless Steel Conduit, Heavy Duty Flexible Conduit
Technical Specifications
- Material: 304-grade stainless steel core with PVC jacket
- Temperature Rating: -10 to +105 degrees Celsius
- Nominal Size: 25mm
- Trade Size: 3/4 inch
- Inner Diameter (ID): 21.0mm
- Outer Diameter (OD): 26.5mm
- Minimum Bend Radius: 75mm
- Length: 25 meters
- Dimensions (H x L x W): 26.5mm x 25000mm x 26.5mm
- Weight: 2.5 kg
Key Features
- Flexible 304-grade stainless steel core for superior corrosion resistance
- UV stabilised black PVC jacket providing liquid tight protection
- Non-flame propagating and resistant to most oils, acids, and vapours
- Compression resistant to HD rating of 1250 Newtons
- Operating temperature range from -10 to +105 degrees Celsius
- IP66 rating with CABFLX fittings
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional experienced with flexible conduit systems to ensure compliance with electrical safety standards.
Applications
- Indoor and outdoor cable installations requiring corrosion resistance
- Harsh environments with exposure to oils, acids, and vapours
- Flexible conduit applications needing mechanical and environmental protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Corrosion resistance extends product life in harsh environments
- UV stabilised PVC jacket reduces environmental degradation from sunlight exposure
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CONDUIT CSS SS304 PVC NC25 X 25M BLACK is available for immediate purchase, ideal for cable protection in industrial, commercial, and residential applications requiring corrosion resistance.
