Trade Discount 25%

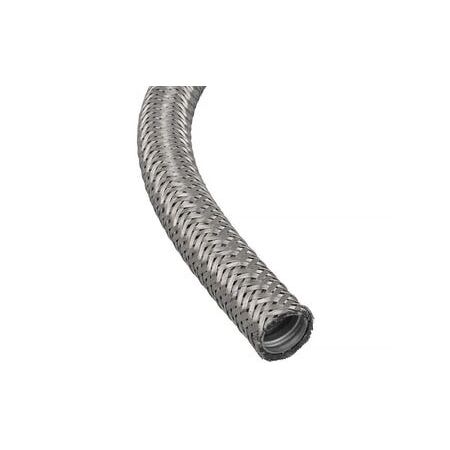

Flexible Stainless Steel Conduit Braided 20mm 25m Grey Cabac
Cabac 20mm flexible stainless steel conduit (25m length) features braided overbraid protection. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Type: Adaptaflex Conduit SSB
- Core Material: Stainless Steel 316
- Overbraid Material: Stainless Steel 316
- EMI Screening: Standard
- Inherent Low Fire Hazard (ILFH): Yes
- Temperature Range (Static Applications): -50ºC to +300ºC
- Temperature Range (Dynamic Applications): -45ºC to +250ºC
- UV Resistance: Very High
- Flexibility: High
- Fatigue Life: High
- IP Rating: IP40
- Mechanical Protection: High flexibility and fatigue life
- Abrasion Resistance: Very High
- Finish: Braid material colour
- Application: Indoors/Outdoors - standard EMI screen - very high abrasion resistance
- Compliance: Conforms to BSI Kitemark KM-35161, Low Voltage Directive
- Dimensions (H x L x W): 20mm x 25000mm x 20mm
- Weight: 3 kg
Key Features
- Stainless steel 316 core and overbraid for exceptional mechanical strength and durability.
- Standard EMI screening for reliable protection against electromagnetic interference.
- Inherent low fire hazard (ILFH) properties enhance safety in fire-risk installations.
- Wide temperature range: -50ºC to +300ºC (static) and -45ºC to +250ºC (dynamic).
- Very high UV resistance for excellent outdoor performance and longevity.
- High flexibility and fatigue life for easy installation and long-term reliability.
- IP40 rating provides protection against solid objects larger than 1mm and limited water protection.
- Conforms to BSI Kitemark KM-35161 and Low Voltage Directive.
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with safety standards and optimal performance.
Applications
- Oven furnaces, foundries, and welding: Protection for electrical wiring in high-temperature environments.
- Machine tools (screening): Safeguards electrical cables from EMI interference in machinery applications.
- Lighting: Reliable protection and routing of electrical cables in lighting installations.
- Rail infrastructure: Durable protection in demanding railway environments.
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Inherent low fire hazard properties contribute to safer installations and reduced fire risk.
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Cabac Adaptaflex Stainless Steel Core and Overbraid Conduit NC20 x 25M is available for immediate purchase, ideal for high-temperature, EMI-sensitive, and outdoor electrical installations.
