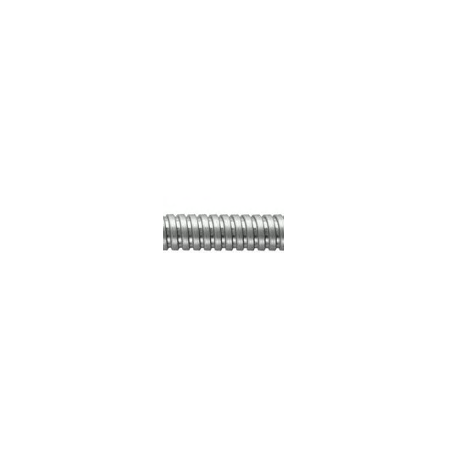

Flexible Steel Conduit 16mm | Flame Retardant & UV Protected | 25m Length by United Manufacturers Australia
Flexible steel conduit with 16mm nominal size and UV protection—ideal for electrical wiring in dry environments. Built for industrial and commercial use, it offers flame retardant properties and high mechanical strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UMGSF-16-25
Brand: United Manufacturers Australia
SKU: UMGSF-16-25
Alternatively Known As: Galvanised Steel Flexible Conduit, Galvanized Flexible Conduit, Steel Flex Conduit 16mm
Technical Specifications
- Nominal size: 16.0mm
- Inner diameter: 13.0mm
- Outer diameter: 17.1mm
- Minimum bend radius: 70.0mm
- Length: 25m coil
- Approvals: IEC EN61368, RoHS
- IP rating: IP40-65 depending on termination
- Temperature range: -50°C to +300°C
- Dimensions (H x L x W): 16mm x 25000mm x 16mm
- Weight: 2.5 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- Temperature range from -50°C to +300°C
- IP40-65 depending on termination
- No protection against moisture (dry environments)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial electrical installations
- Areas requiring flame retardant and UV protected conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction extends product life reducing waste
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for details.
Available Now
The Gal Flex 16mm x 25m galvanised steel flexible conduit is available now for immediate purchase. Ideal for electrical wiring protection in dry industrial and commercial environments.
