Trade Discount 17%

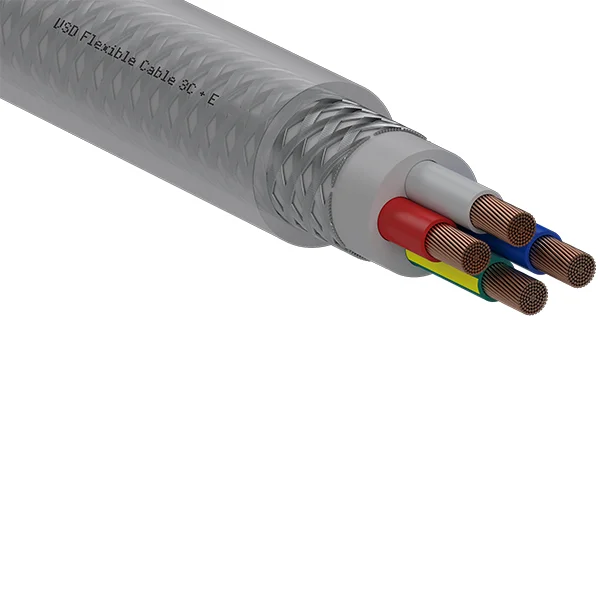

Flexible VSD Power Cable 3C+E 2.5mm | 0.6/1kV Voltage | EMC Screened | 100m Drum | Per 100m by Eltech
Flexible VSD power cable with 3C+E configuration and 2.5mm conductor size—ideal for industrial variable speed drive applications. Built for power distribution in commercial settings, with EMC screening to reduce interference and enhance energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible VSD Power Cable Screened 3C+E 2.5mm V90 0.6/1kv – 100m Drum
Brand: Eltech
SKU: 131404-100
Alternatively Known As: VSD Power Cable, Screened Power Cable 3C+E, Flexible VSD Cable 2.5mm, EMC Power Cable
Technical Specifications
- Conductor Size: 2.5mm²
- Cores: 3C+E (3 cores plus earth)
- Voltage Rating: 0.6/1kV
- Insulation Type: V90
- Length: 100 meters per drum
- Screening: EMC screened for reduced interference
- Dimensions (H x L x W): 20mm x 100000mm x 20mm
- Weight: 10 kg
Key Features
- Flexible screened power cable suitable for VSD applications
- 3 cores plus earth (3C+E) configuration
- 2.5mm² conductor size
- Voltage rating of 0.6/1kV
- V90 insulation rating for high temperature resistance
- Supplied on a 100m drum for ease of use
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial variable speed drive (VSD) power connections
- Power distribution in commercial and industrial settings
- Machinery and equipment requiring screened power cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Screened cable reduces electromagnetic interference, improving energy efficiency of connected equipment
- Durable insulation extends cable life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Flexible VSD Power Cable Screened 3C+E 2.5mm V90 0.6/1kv – 100m Drum is available for immediate purchase, ideal for industrial and commercial power cable applications.
