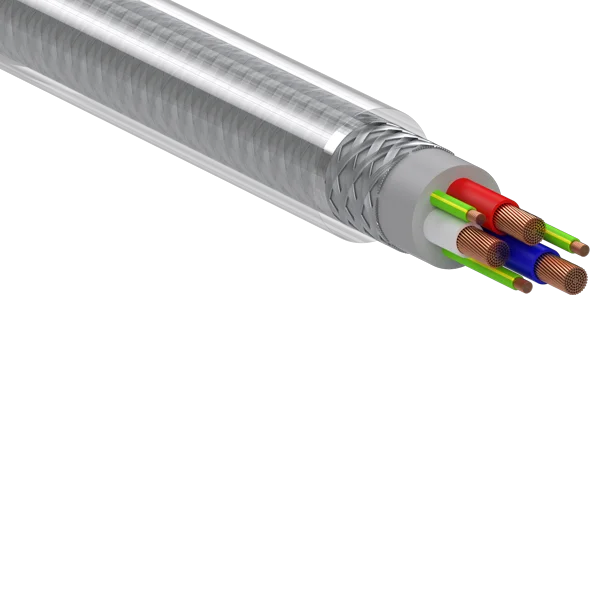

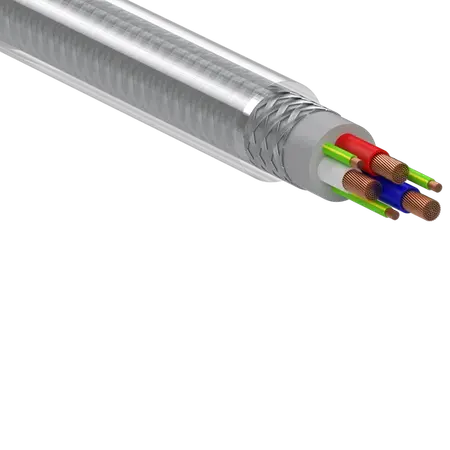

Flexible VSD Power Cable 3C+3E 10.0mm | 0.6/1kV Voltage | EMC Screened Design | Per 5m by Eltech
Flexible VSD power cable with 3 conductors and 3 earths, rated for 0.6/1kV—ideal for industrial motor drives and power distribution. Built for dynamic applications, featuring EMC screening for reduced interference and enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible VSD Power Cable Screened 3C+3E 10.0mm V90 0.6/1kV
Brand: Eltech
SKU: 131704
Alternatively Known As: VSD Power Cable, Screened VSD Cable, Flexible Power Cable 10mm, EMC Power Cable
Technical Specifications
- Cable Size: 10.0mm²
- Cores: 3 Conductors + 3 Earths
- Voltage Rating: 0.6/1kV
- Insulation Type: V90
- Screening: Yes, for EMC protection
- Drum Length: 500m
- Minimum Order Quantity: 5m
- Dimensions (H x L x W): 30mm x 500000mm x 30mm
- Weight: 1.2 kg
Key Features
- Flexible design suitable for dynamic applications
- Screened cable construction for electromagnetic compatibility (EMC)
- 3 cores plus 3 earth cores configuration
- Voltage rating of 0.6/1kV
- V90 insulation rating for enhanced thermal performance
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal cable performance.
Applications
- Industrial motor drives and variable speed drives (VSD)
- Power distribution in industrial and commercial installations
- Screened cable applications requiring EMC protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces cable replacement frequency, minimizing waste
- Screening reduces electromagnetic interference, supporting efficient energy use
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eltech Flexible VSD Power Cable Screened 3C+3E 10.0mm V90 0.6/1kV is available now for immediate purchase. Ideal for industrial and commercial variable speed drive power applications.
