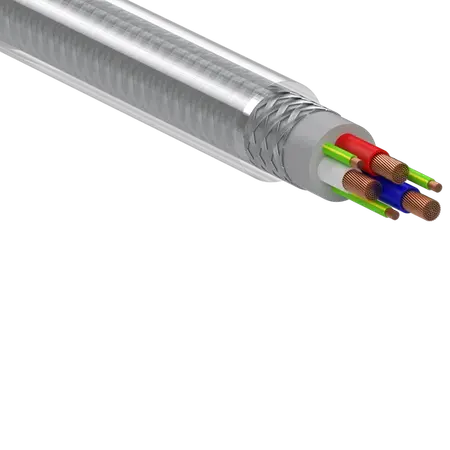

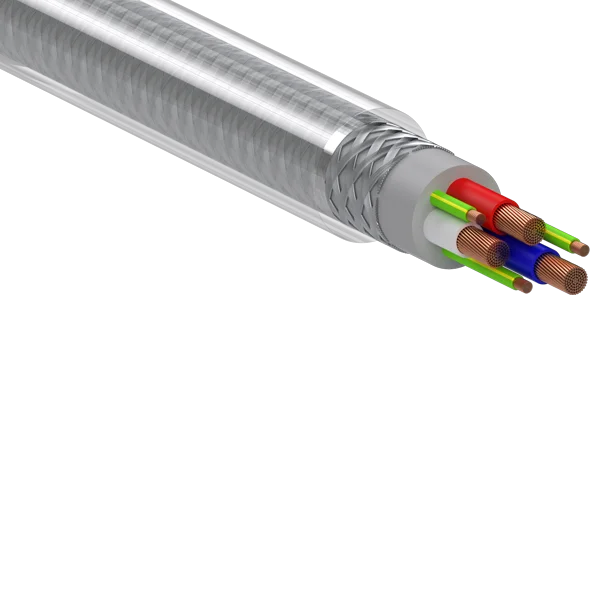

Flexible VSD Power Cable 3C+3E 16.0mm V90 0.6/1kV | Screened Design & EMC Compliance | Durable | Per 5m by Eltech
Flexible VSD power cable with 3C+3E configuration and 16.0mm² conductor size—ideal for industrial motor drives and power distribution. Built for compliance with AS/NZS 3000 standards, featuring V90 insulation for enhanced thermal performance and screened construction to reduce electromagnetic interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible VSD Power Cable Screened 3C+3E 16.0mm V90 0.6/1kv
Brand: Eltech
SKU: 131804
Alternatively Known As: VSD Power Cable, Screened Power Cable, Flexible VSD Cable, 3 Core + 3 Earth Cable
Technical Specifications
- Conductor Size: 16.0mm²
- Cores: 3C (power) + 3E (earth)
- Voltage Rating: 0.6/1kV
- Insulation Type: V90
- Drum Length: 500m
- Minimum Order Quantity: 5m
- Dimensions (H x L x W): 25mm x 500000mm x 25mm
- Weight: 1.5 kg
Key Features
- Flexible design suitable for variable speed drive applications
- Screened cable construction for electromagnetic compatibility (EMC)
- 3 Core power conductors plus 3 Earth conductors
- Voltage rating of 0.6/1kV
- V90 insulation for enhanced thermal performance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper EMC screening.
Applications
- Industrial motor drives and variable speed drive (VSD) applications
- Power distribution in commercial and industrial settings
- Electrical installations requiring screened power cables for EMC compliance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable cable construction reduces need for frequent replacements
- Screening reduces electromagnetic interference, improving energy efficiency of connected equipment
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Flexible VSD Power Cable Screened 3C+3E 16.0mm V90 0.6/1kv is available for immediate purchase, ideal for industrial and commercial electrical installations requiring screened power cables.
