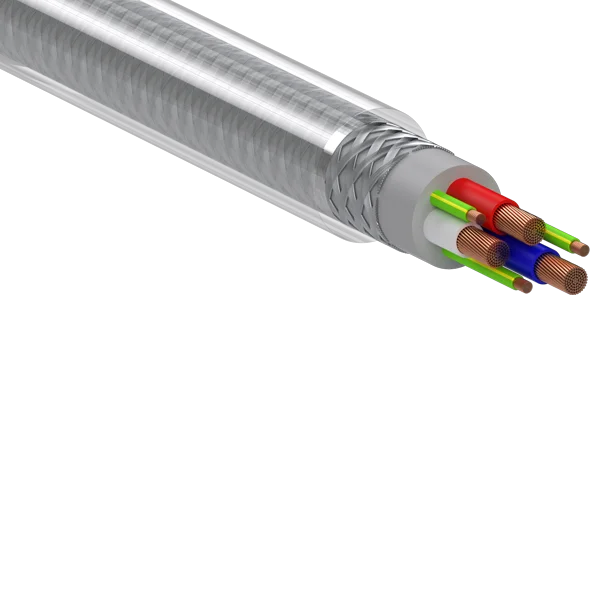

Flexible VSD Power Cable 3C+3E 35.0mm | 0.6/1kV Voltage | Screened for EMC | Per 5m by Eltech
Flexible VSD power cable with 3 cores plus 3 earth cores and a voltage rating of 0.6/1kV—ideal for industrial motor drives and power distribution. Built for compliance with EMC standards, this cable features V90 insulation for enhanced thermal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible VSD Power Cable Screened 3C+3E 35.0mm V90 0.6/1kV
Brand: Eltech
SKU: 1311004
Alternatively Known As: VSD Power Cable, Screened Power Cable, Flexible VSD Cable, EMC Power Cable 35mm
Technical Specifications
- Cable Size: 35.0mm²
- Configuration: 3 cores + 3 earth cores
- Voltage Rating: 0.6/1kV
- Insulation Type: V90
- Drum Length: 500m
- Minimum Order Quantity: 5m
- Dimensions (H x L x W): 35mm x 500000mm x 35mm
- Weight: 3.5 kg
Key Features
- Flexible design suitable for variable speed drive applications
- Screened cable construction for electromagnetic compatibility (EMC)
- 3 cores plus 3 earth cores configuration
- Voltage rating of 0.6/1kV
- V90 insulation for enhanced thermal performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal cable performance.
Applications
- Industrial motor drives and variable speed drive (VSD) applications
- Power distribution in commercial and industrial settings
- Electrical installations requiring screened power cables for EMC compliance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Screening reduces electromagnetic interference, supporting compliance with environmental electromagnetic standards
Warranty Information
Standard manufacturer warranty applies; please refer to Eltech warranty terms for details.
Available Now
The Eltech Flexible VSD Power Cable Screened 3C+3E 35.0mm V90 0.6/1kV is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring screened power cables.
